English

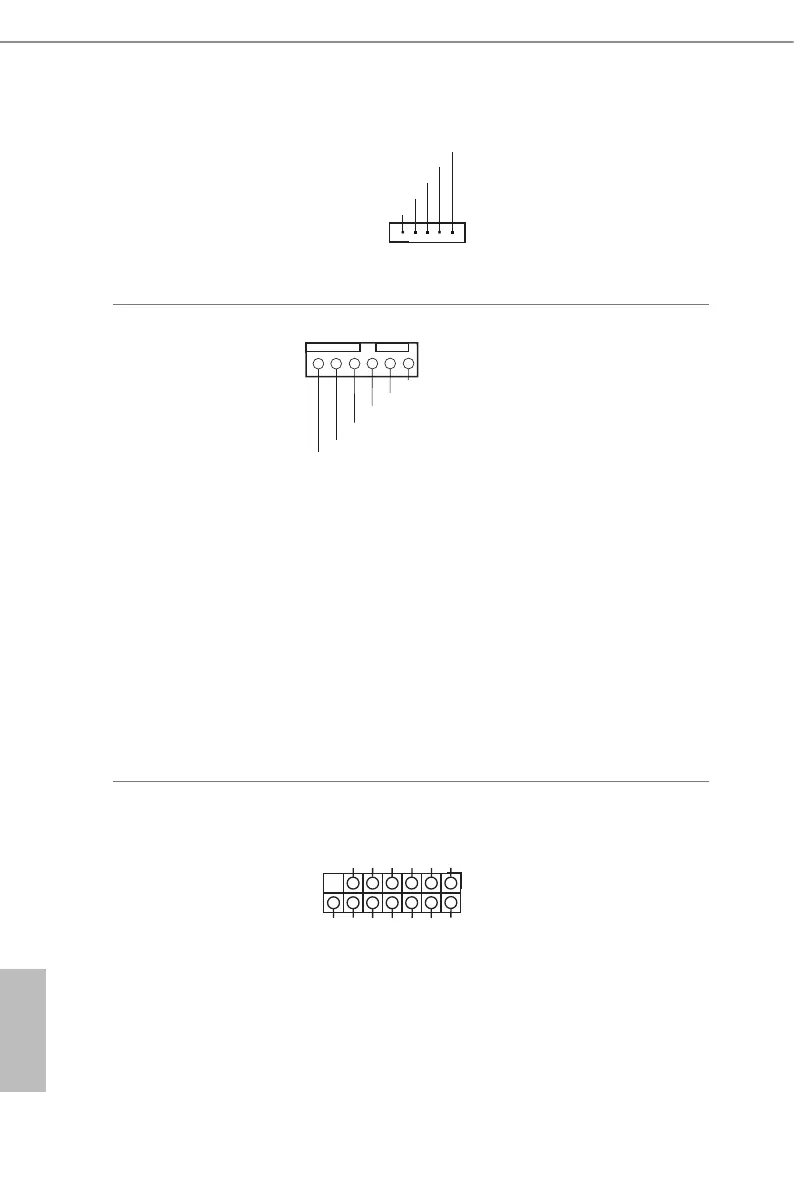

Backplane PCI Express
Hot-Plug Connector
(5-pin CPU1_ HSBP1)
(see p.6, No. 35)
1
+3V
GND
P0_HP_ALERT_L
CPU_HP_SDA
CPU_HP_SCL
e header is used for the hot
plug feature of HDDs on the
backplane.
System Fan Connectors
(6-pin FAN1)
(see p.6, No. 11)
(6-pin FAN2)
(see p.6, No. 13)
(6-pin FAN3)
(see p.6, No. 17)
(6-pin FAN4)
(see p.6, No. 18)
(6-pin FAN5)
(see p.6, No. 19)
(6-pin FAN6)
(see p.6, No. 20)
(6-pin FAN7)
(see p.6, No. 26)
(6-pin FAN8)
(see p.6, No. 28)
FAN_SPEED_SENSOR1
FAN_SPEED_CONTROL
12V(FAN_VOLTAGE)
GND
FAN_SPEED_SENSOR2
Please connect fan cables to
the fan connectors and match
the black wire to the ground
pin. All fans support Fan
Control.
SPI TPM Header
(13-pin TPM_BIOS_PH1)
(see p.6, No. 49)
SPI_WP
SPI_CS
MISO
RSMRST#
TPM_CS#
SPI PIRQ
SPI_RST
MOSI
SPI_CLK
+3.3V
GND
SPI_HOLD
X
1
is connector supports SPI
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
