ASROCK M8 - Page 18

M8
13
English

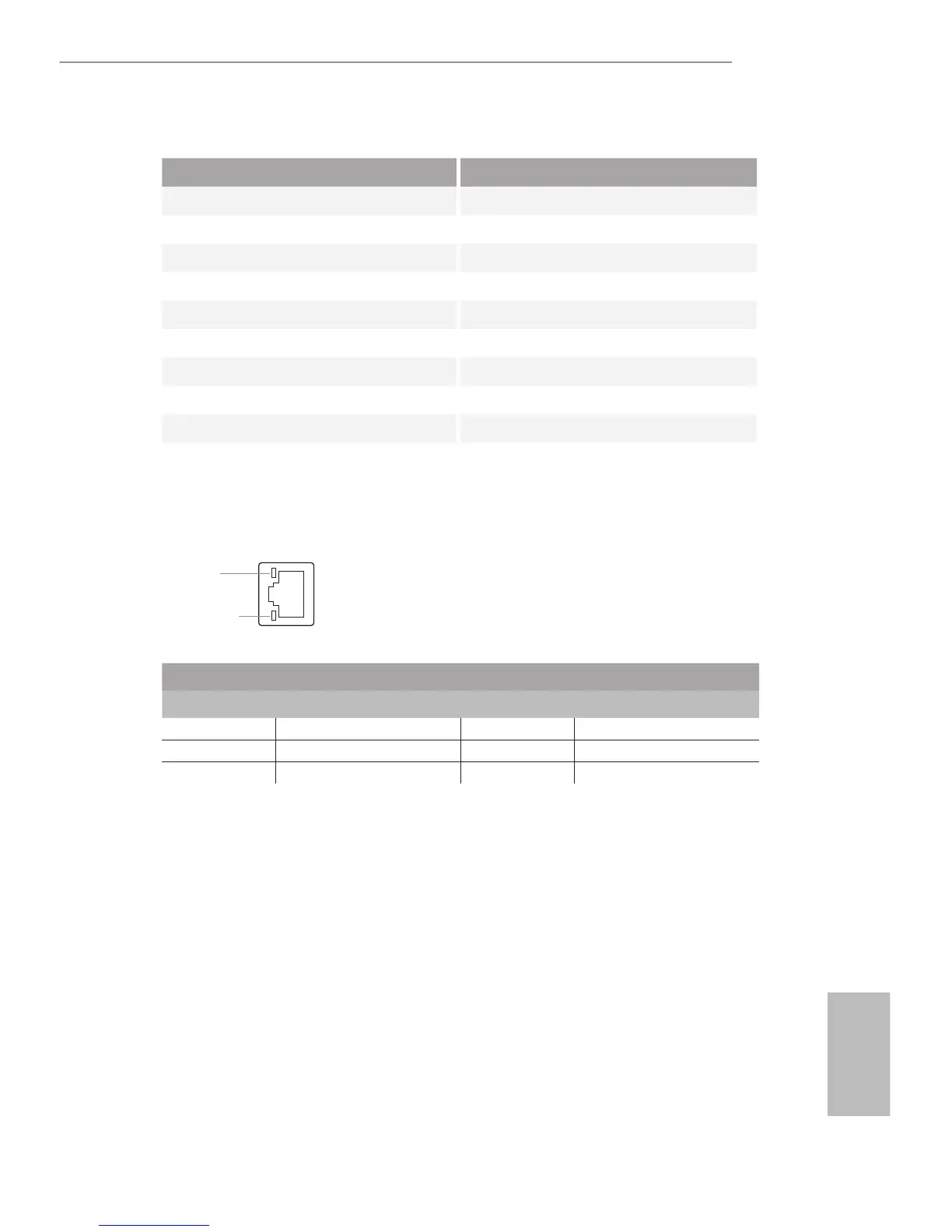

No. Description No. Description
1 Line In port (light blue) 10 eSATA2 port**
2 Line Out port (lime) 11 DisplayPort
3 Center/Subwoofer port (orange) 12 HDMI port
4 Rear Speaker Out port (black) 13 USB3.0 port
5 LAN RJ-45 port* (Intel Gigabit LAN) 14 USB3.0 port
6 USB2.0 ports 15 USB3.0 port
7 USB2.0 ports 16 USB3.0 port
8 USB2.0 ports 17 Optical SPDIF Out port
9 USB2.0 ports 18 Microphone port (pink)
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** e eSATA connector is shared with SATA3_4 connector.
ACT/LINK LED
SPEED LED
LAN Port
