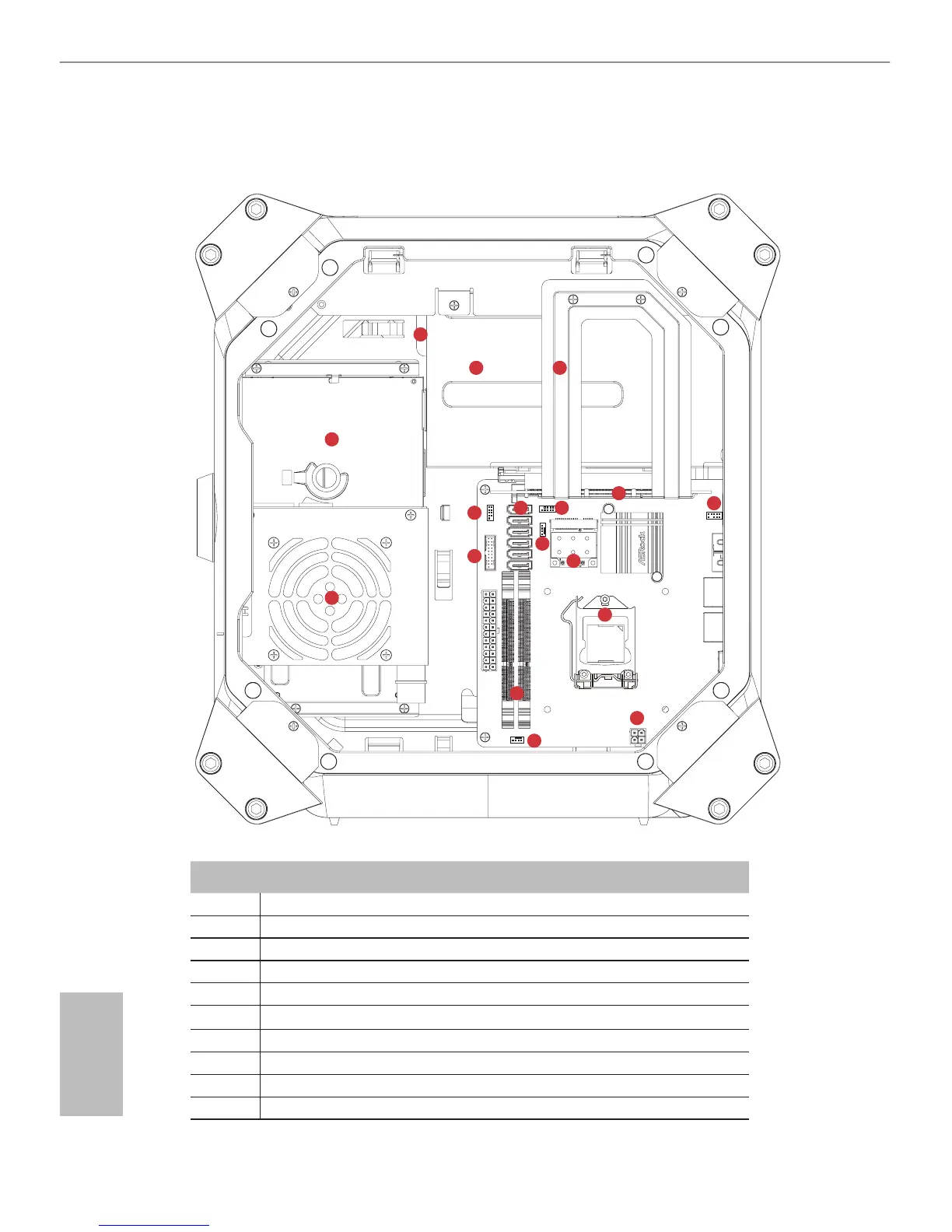

2.3 Inside View
12
3
5
7 8
6
11
15
16
12
17
14
9
13
10
4
No. Description
1 Riser card retention bracket
2 VGA card holder
3 Hard disk drive tray (compatible with 4 x 2.5" HDD or 1 x 3.5 HDD)
4 ODD + 2.5" HDD Tray
(compatible with 1 x slot-in ODD and 1 x 2.5" HDD)
5 Power supply unit
6 Power panel connector
7 SATA 3.0 connectors
8 USB2.0 connector
9 PCIe slot
