48
English

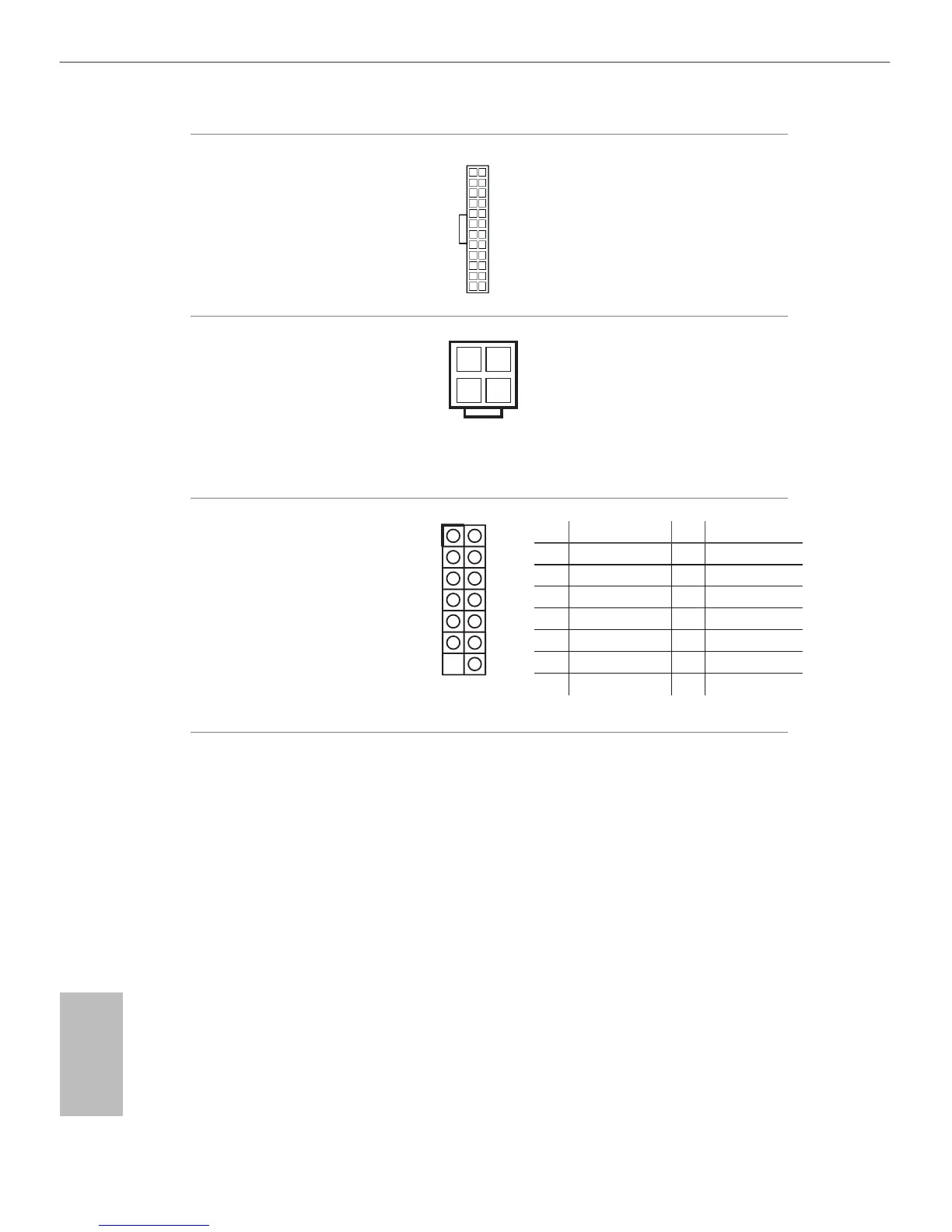

ATX Power Connector
(24-pin ATXPWR1)
(see p.42, No. 5)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(4-pin ATX12V1)
(see p.42, No. 13)
is motherboard
provides a 4-pin ATX 12V
power connector. To use a
8-pin ATX power supply,
please plug in 4 of the 8
pins (Pin 1 to Pin 4).
LPC Debug Header
(13-pin LPC1)
(see p.42, No. 2)
1
PIN PIN 
14 +3V 13 No pin
12 +3V 11 +3V
10 GND 9 GND
8 LAD3 7 LAD2
6 LAD1 5 LAD0
4 LFRAME# 3 RESET#
2 GND 1 CLK
13
24
1
12
