Quick guide

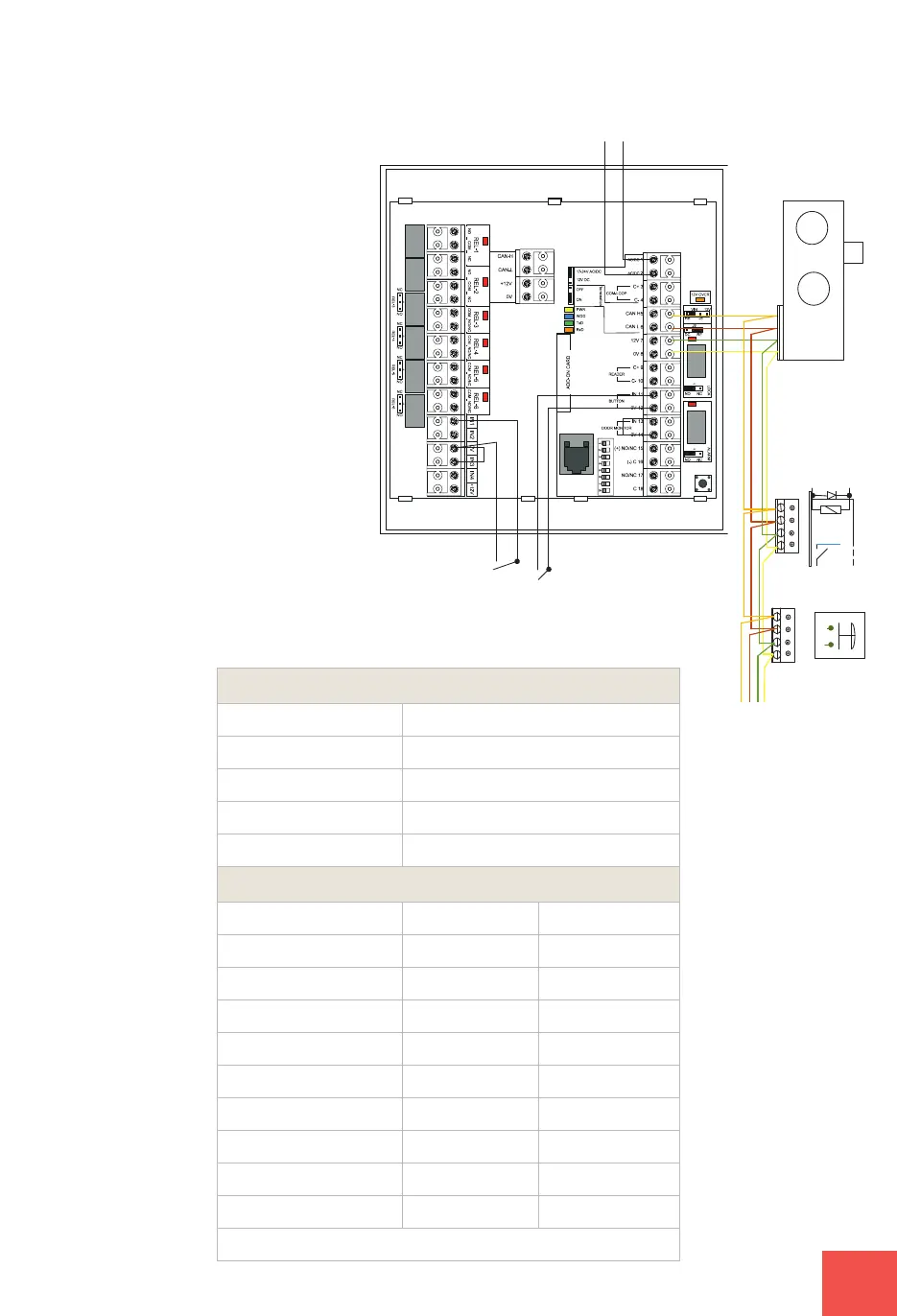

Configuration of DAC as control unit
KP1 in DAC530 and DAC564
Relay & Input Function
Relay Out (Lock) Electric strike
Relay Out (Alarm) Alarm Bypass
IN 13&14 Door monitor Door position in
IN 11&12 Button Open
KP2 in DAC564 and DAC530 with relay board 400RC64
Relay RE1 Bolt out
Relay RE2 Bolt in
Relay RE3 Unlocked
Relay RE4 Door position
Relay RE5 Buzzer
Relay RE6 Tamper
IN1 Day/Night
IN2 Not used
IN3 Alarm blocking Normally closed
IN4 Not used
With DIP8 = ON, DIP7 = OFF: The unlock time is set with DIP1 – 4
-
Vit/White
Brun/Brown
Grön/Green
Gul/Yellow
17-24V AC/DC
Öppna/Open
Dag/Natt,
Day/Night
DIP8=ON, DIP7=OFF: Function of relays and inputs
13
