Assa Abloy ADAMS RITE 4300 Series User Manual

6 80-0180-418, Rev D

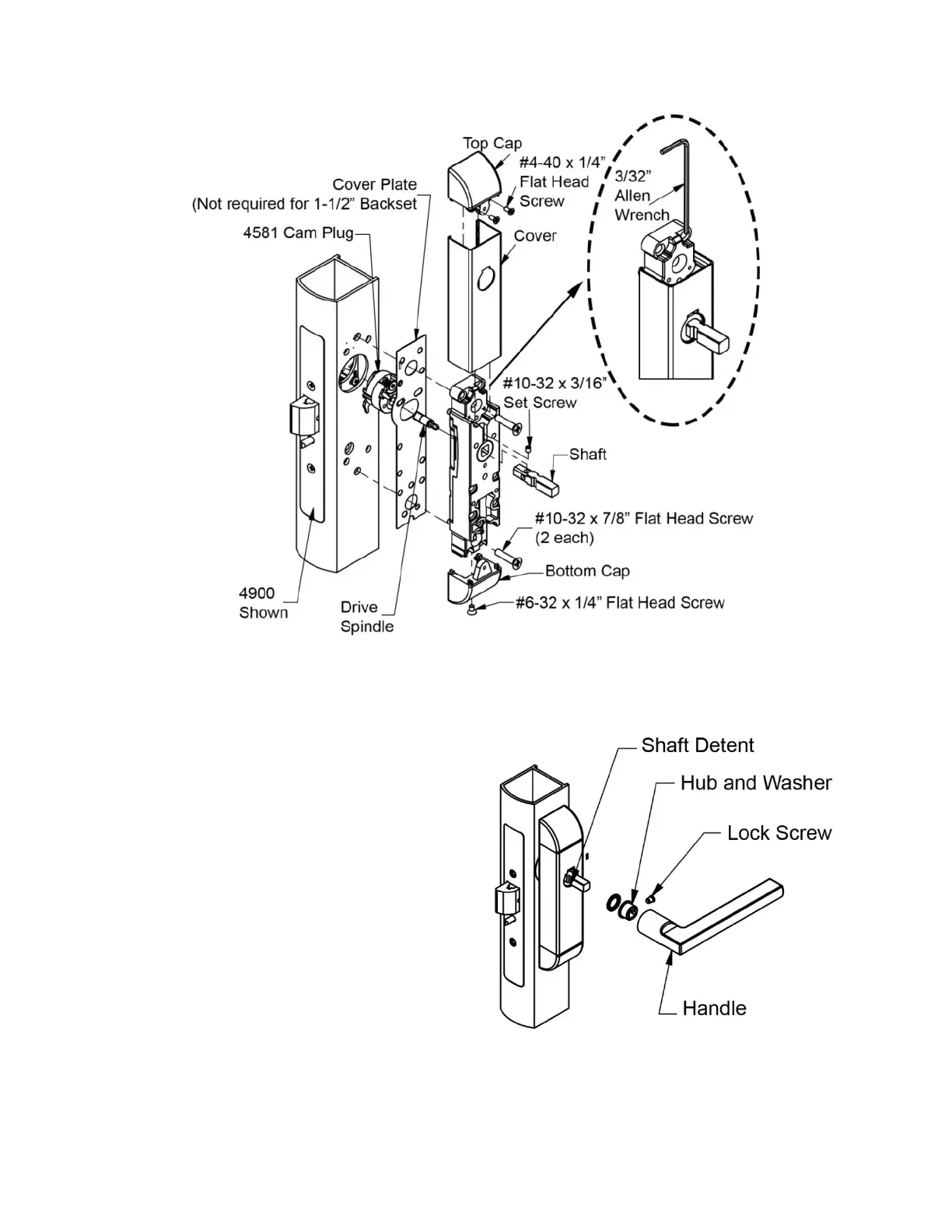

Figure 6. Installing Trim to Stile
Installing the Handle
1. INSERT washer and then INSERT hub
over the shaft, as required (see Figure 7,
“Installing the Handle”).
Figure 7. Installing the Handle
2. INSTALL the handle over the hub with the
hole aligned with the hole on the hub (see
Figure 7).
NOTE: The shaft detent should be aligned
with the locking screw.
3. SLIDE the handle in until it rests against
the trim cover.
4.
Using a 1/8” Allen wrench, TIGHTEN the
lock screw to secure the handle to the
shaft (see Figure 7).
