Page 11 of 16 For more information visit website assaabloyesh.com P/N: 3080006.016 Rev1
Double Door Strike Installation

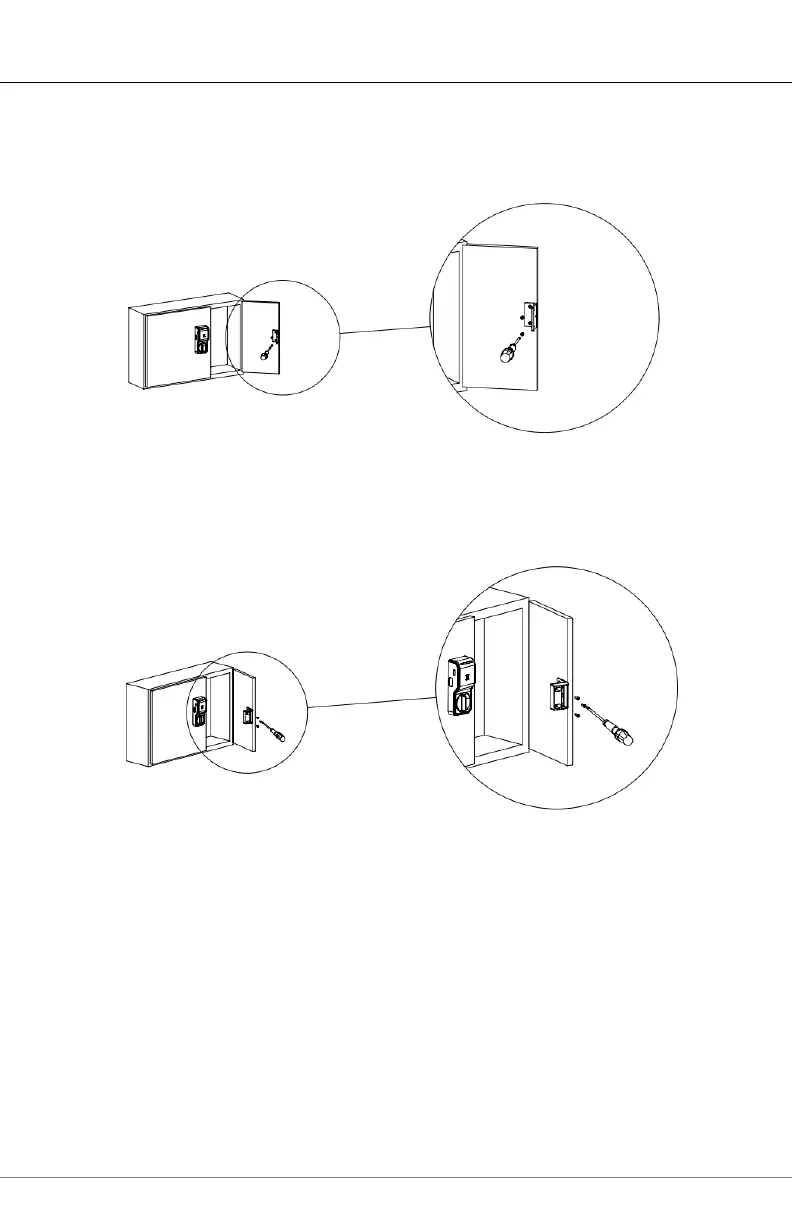

1. Align Double door bracket with mounting holes from the strike plate template.
Secure double door bracket using 3x screw D.
2. Secure strike plate to double door bracket using 3x screw D as shown below.
