Page 10 of 16 For more information visit website assaabloyesh.com P/N: 3080006.016 Rev1

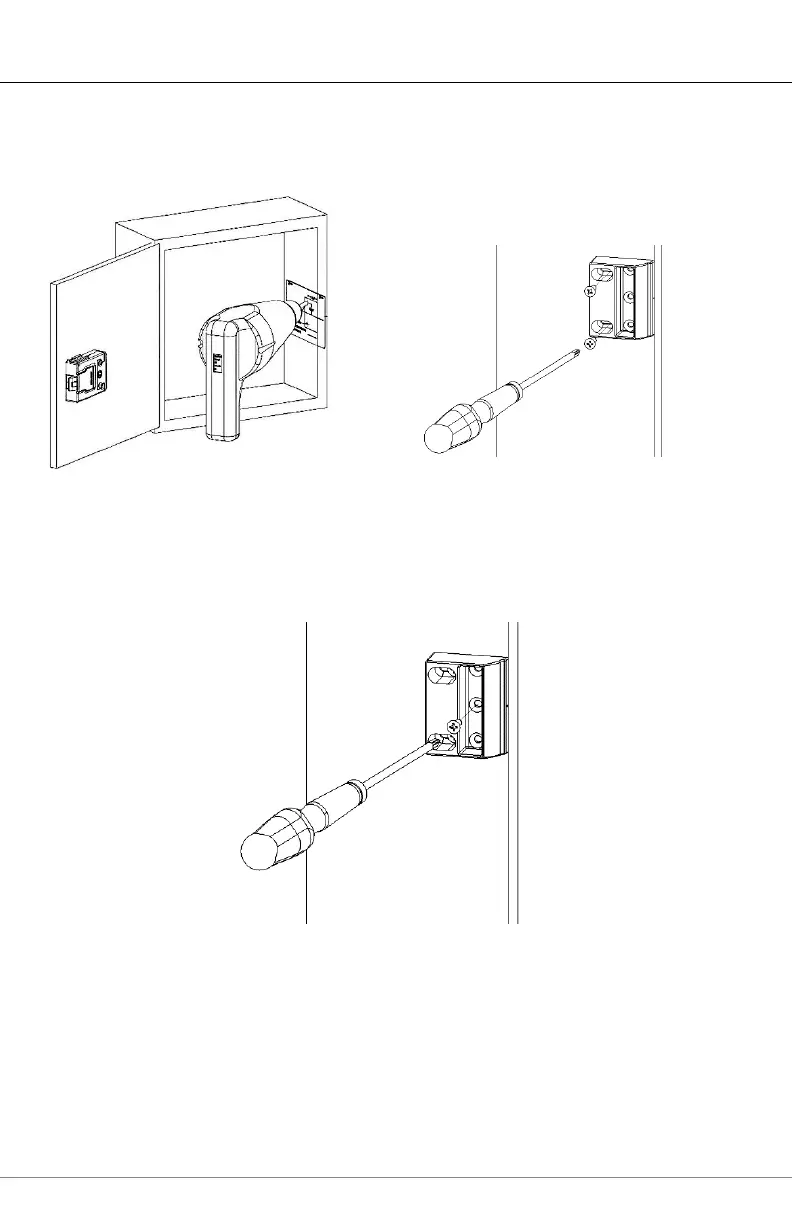

Strike Plate Installation
1. Align strike plate template to centerline
and edge of cabinet. Drill mounting holes.
2. Secure strike plate to inside cabinet
wall using 2x screw D, but do not fully
tighten. Adjust strike plate so the edge
is flush with the cabinet wall edge then
tighten.
3. After the strike plate is in the desired position, fasten screw D into strike plate as
shown below.
