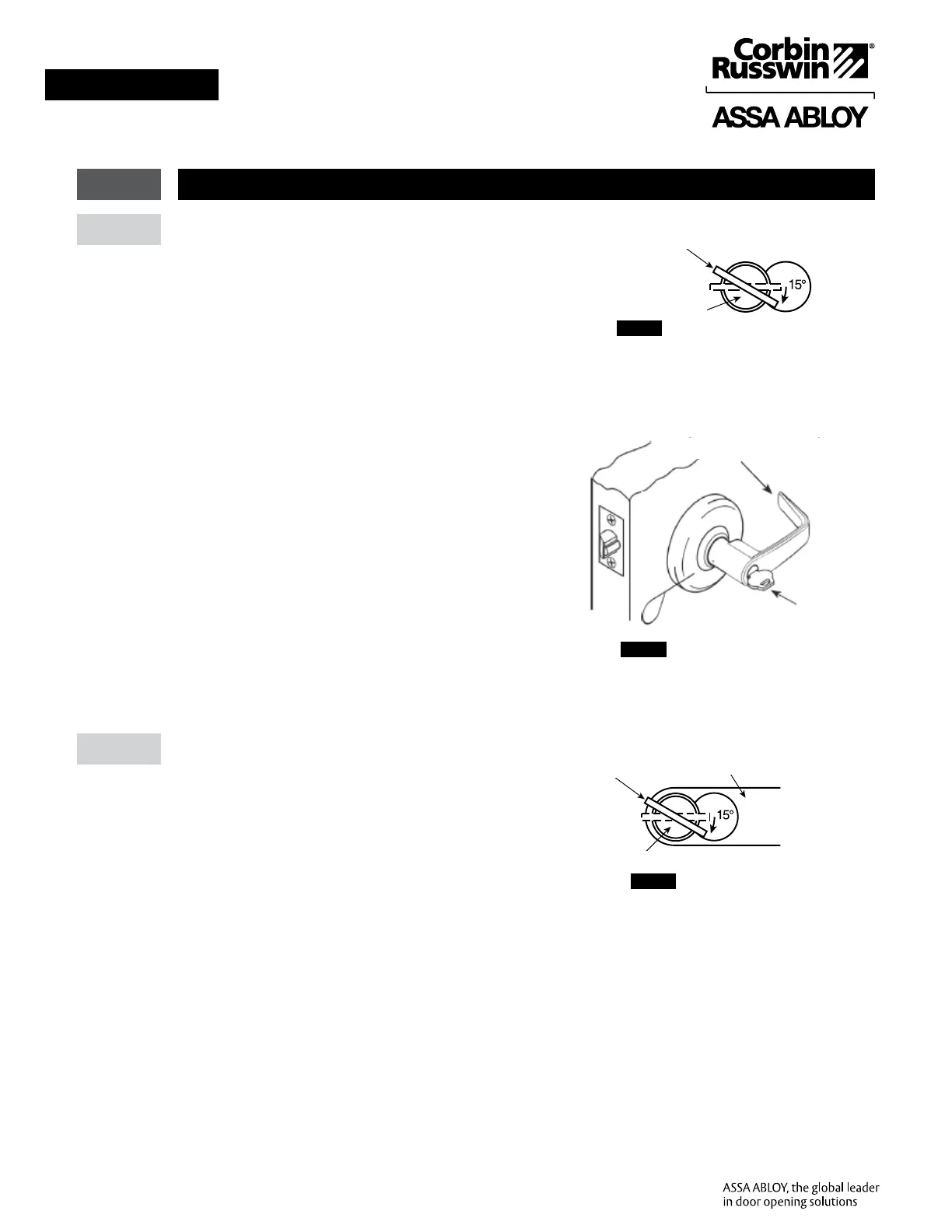

4 Cylinder Installations (cont.)
a Interchangeable Core Installation (cont.)
• Insert key marked CONTROL and turn clockwise
approximately 15°. See Figure7.
• Insert core into lever and return key to its
original horizontal position locking core in place.
See Figure8.
• Withdraw key. Test lockset for correct function
with operating key.
• Control key has no further use in lockset
installation and must be safeguarded for return
to security personnel when installation is complete.
b Interchangeable Core Removal
To remove interchangeable core:
• Insert key marked CONTROL and turn clockwise
approximately 15°. See Figure9.
• Pull core and tailpiece completely out of lever.
Figure7 Interchangeable Core Installation
Control Key
Core
Interchangeable Core
Lever Assembly
Control Key
Figure8 Locking Core
Figure9 Locking Core
Control Key
Core
Lever
