CL3500 Series
Installation Instructions
Cylindrical Lockset
FM237 03/19
Copyright © 2012, 2019, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
For installation assistance contact Corbin Russwin
1-800-607-5703 • techsupport.corbinrusswin@assaabloy.com
4 Cylinder Installations (cont.)
c Standard Cylinder Installation
• Before installing cylinders, be sure lock is
unlocked and cylinder tailpiece is aligned
in same direction as cylinder bible.
To install standard cylinder (Figure10):
• Slide cylinder all the way into lever.
• 6-pin cylinder: fold retainer at hinge
and press fit retainer halves together.
• 7-pin cylinder: break retainer at hinge
and discard spacer section. Remove
black cylinder spacer from inside of
chassis rollback for clearance.
d Conversion Kit
To convert Schlage
®
cylinders with
CL3500 lockset (Figure11):
• Remove threaded collar and Schlage
®
tailpiece.
• Install CL3500 tailpiece with threaded collar.
Adjust collar for proper end play of plug.
11/16"
(17 mm)
7/8"
(22 mm)
6 PIN
7 PIN
ACTUAL SIZE SHOWN

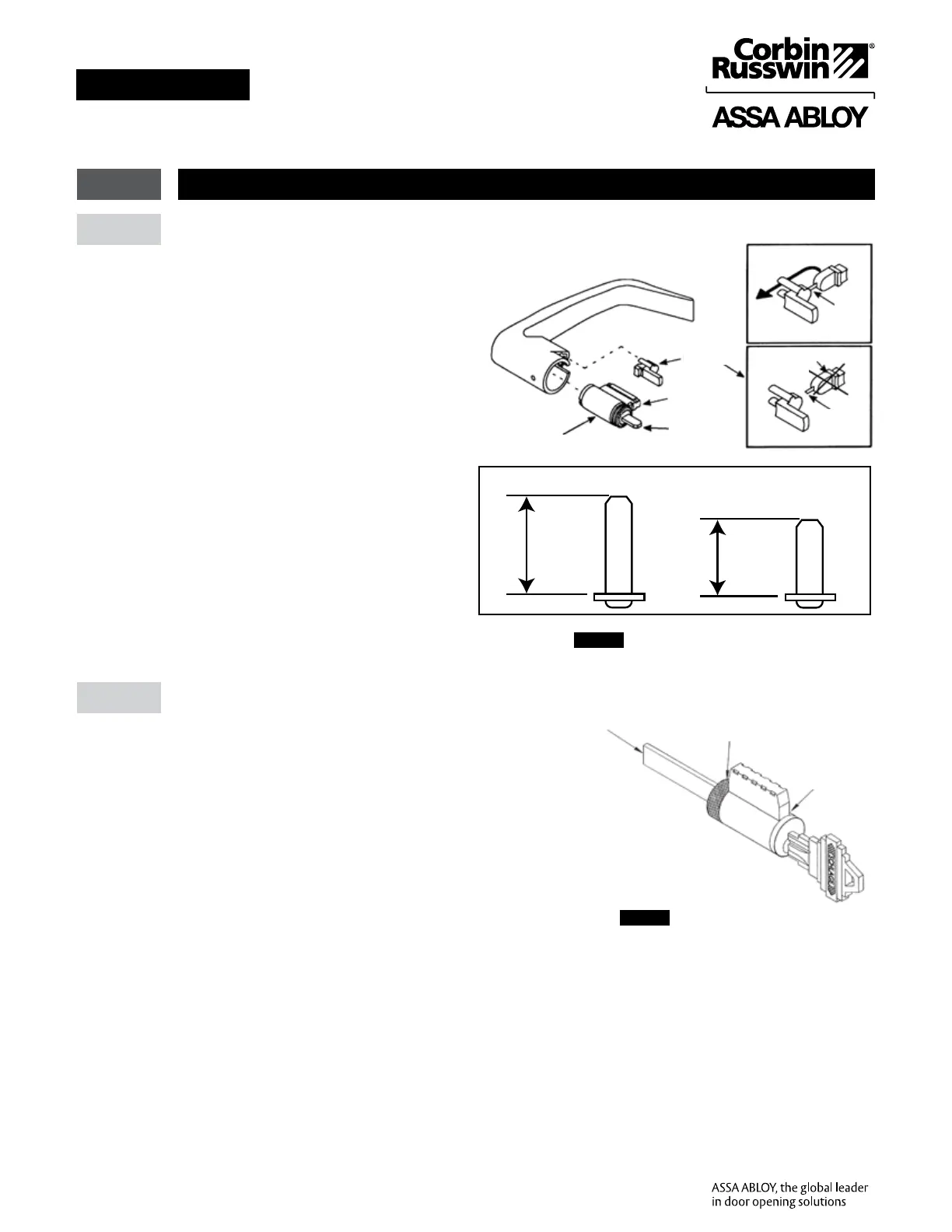

Figure10 Cylinder Installation
Lever
Retainer
Cylinder
Cylinder
Bible
Cylinder
Tailpiece
Fold Retainer Halves
Actual Size Shown
For 7-pin Cylinder
7-pin
6-pin
7/8"
(22 mm)
11/16"
(17 mm)
For 6-pin Cylinder
Hinge
Hinge
Remove Spacer
and Discard
Figure11 Conversion Kit Installation
Schlage
®
Tailpiece
Threaded
Collar
Schlage
®
Cylinder
