Assa Abloy HES 8000 Series Installation Instruction

1/8" [3]
4
NOTE: The 8000/8300 electric strike with
801faceplate will fit right into most
standard ANSI A115.2, 1” deep
dustboxes (e.g. the Curries E-1
preparation), requiring no cutting.
If you elect to place the 8000/8300
into the existing dustbox, simply
drill for wire connections.

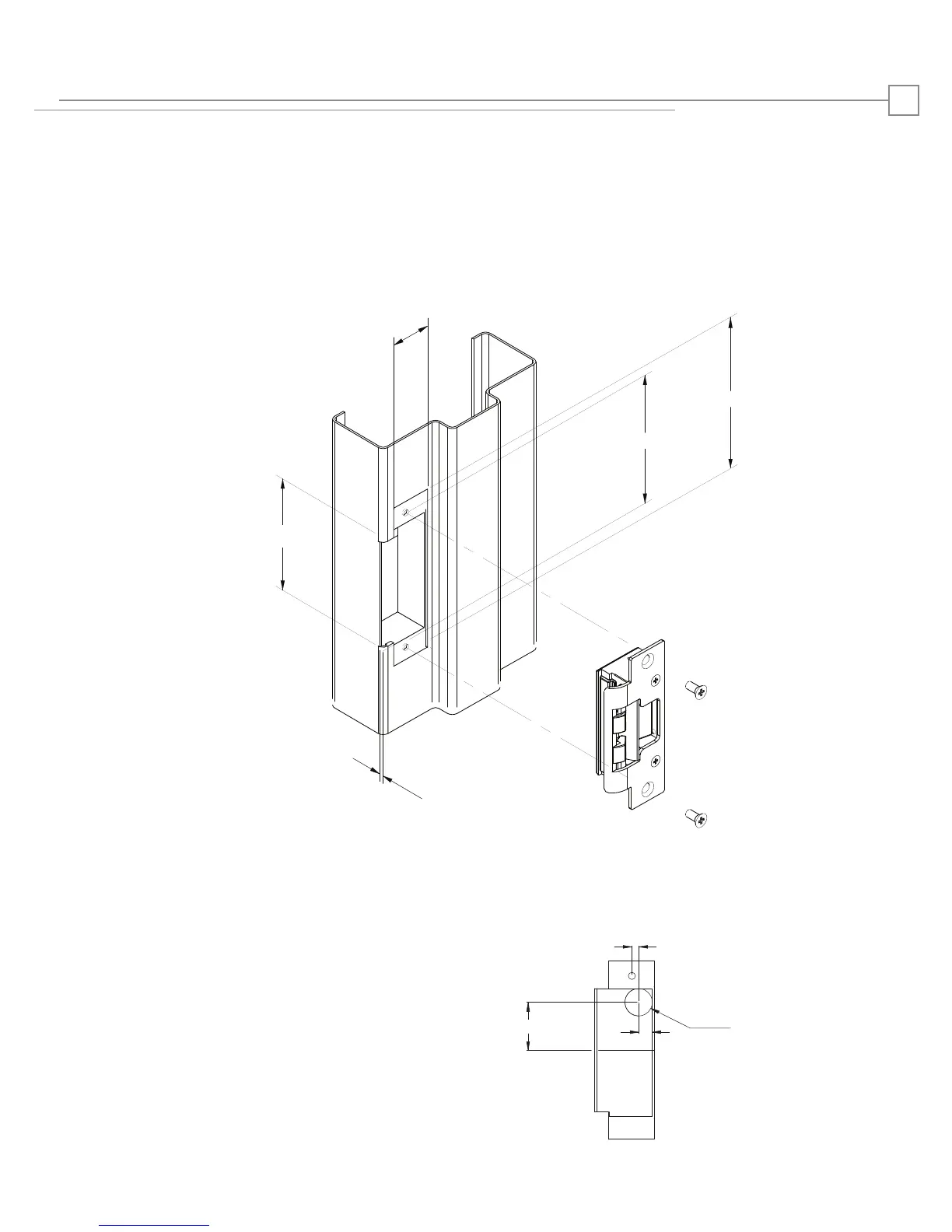

8000/8300 with 801 Faceplate
1-1/4” X 4-7/8” Square Corner Faceplate
ANSI Metal Jamb Installations
4-7/8" [124]
4-1/8" [105]
1-1/4" [32]
3-3/8" [86]
Cutout Templates
®
Diagram 8. Wire Drilling
3/16" [4.8]
3/8"
3/4" [19]
1-1/32” [26.2]
[9.5]
Inches [mm]
Diameter
