Assa Abloy HES 8000 Series - Additional Cutout Templates; 8000;8300 with 801 A Faceplate Template; 8000;8300 with 802 Faceplate Template

5
3-3/8" [86]
1/8" [3]
7-15/16" [202]
1-7/16" [36.5]
7-5/32" [182]
R 5/32" [4]

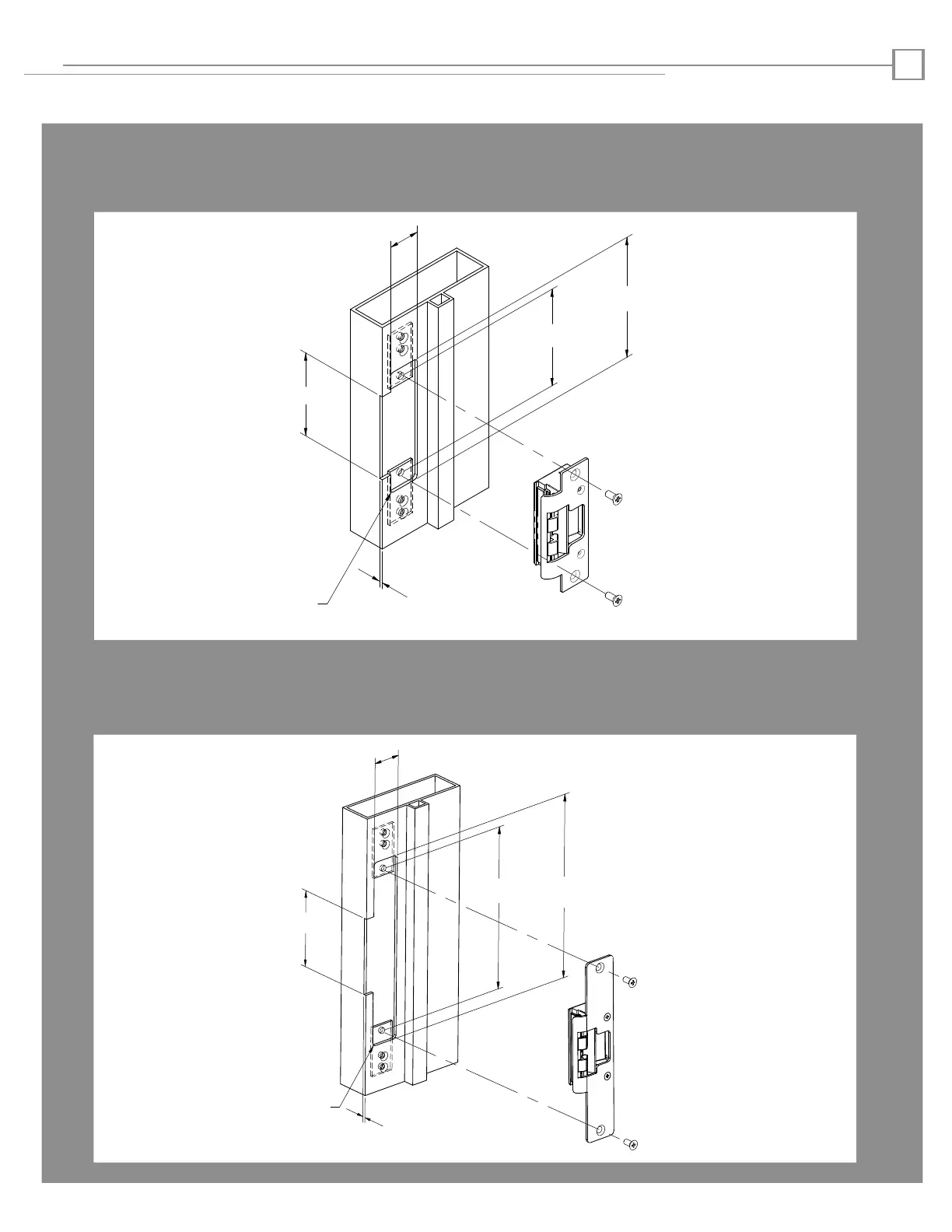

8000/8300 with 801A Faceplate
1-1/4” x 4-7/8” Radius Corner Faceplate
Aluminum Jamb Installations
8000/8300 with 802 Faceplate
1-7/16” x 7-15/16” Radius Corner Faceplate
Aluminum and Wood Jamb Installations
1/8" [3]
3-3/8" [86]
1-1/4"[32]
4-7/8" [124]
R 5/32" [4]
4-1/8" [105]
Cutout Templates
Remove additional material as
needed to provide clearance for
electric strike and wires. Then drill
for wires (see Diagram 8)
Inches [mm]
