6

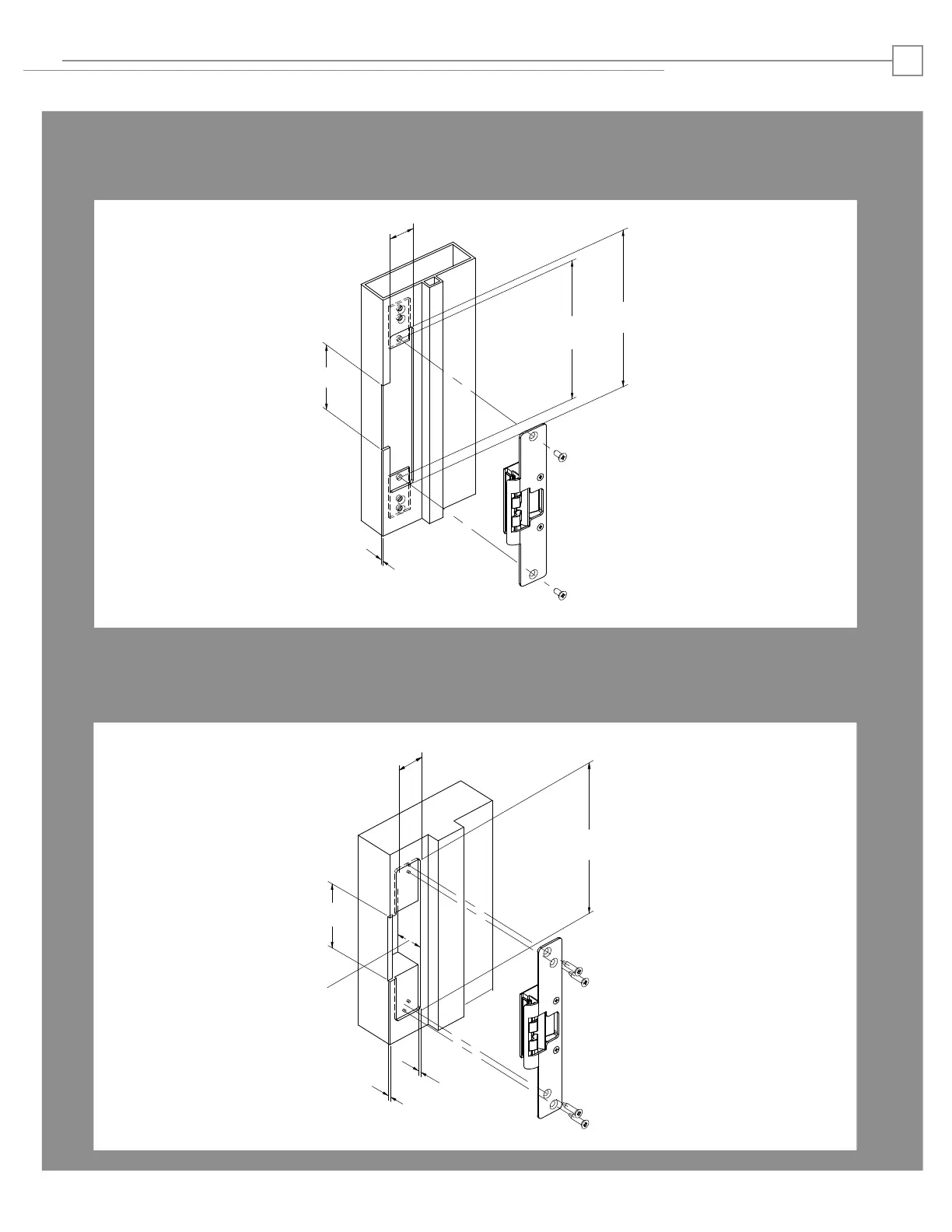

8000/8300 with 803 Faceplate
1-1/4” x 6-7/8” Radius Corner Faceplate
Aluminum Jamb Installations
8000/8300 with 805 Faceplate
1-3/8” x 9” Radius Corner Faceplate
Aluminum or Wood Jamb Installations
6-1/8" [156]
6-7/8" [175]
3-3/8" [86]
1-1/4" [32]
1/8" [3]
9" [228.4]
1-3/8" [35]
3-3/8" [86]
3/32" [2.4]
1/8" [3]
Cutout Template
© 2009 HES, Inc.
3068006.003 rev A.
Remove additional material as
needed to provide clearance for
electric strike and wires. Then drill
for wires (see Diagram 8)
Inches [mm]
1-1/16
