04/30/16
1-800-810-WIRE • www.sargentlock.com • A8011H 11
Copyright © 2016, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Passport 1000 P2 Mortise Lock
Inside of Door
Outside of Door
Fig. 5B
Fig. 5A

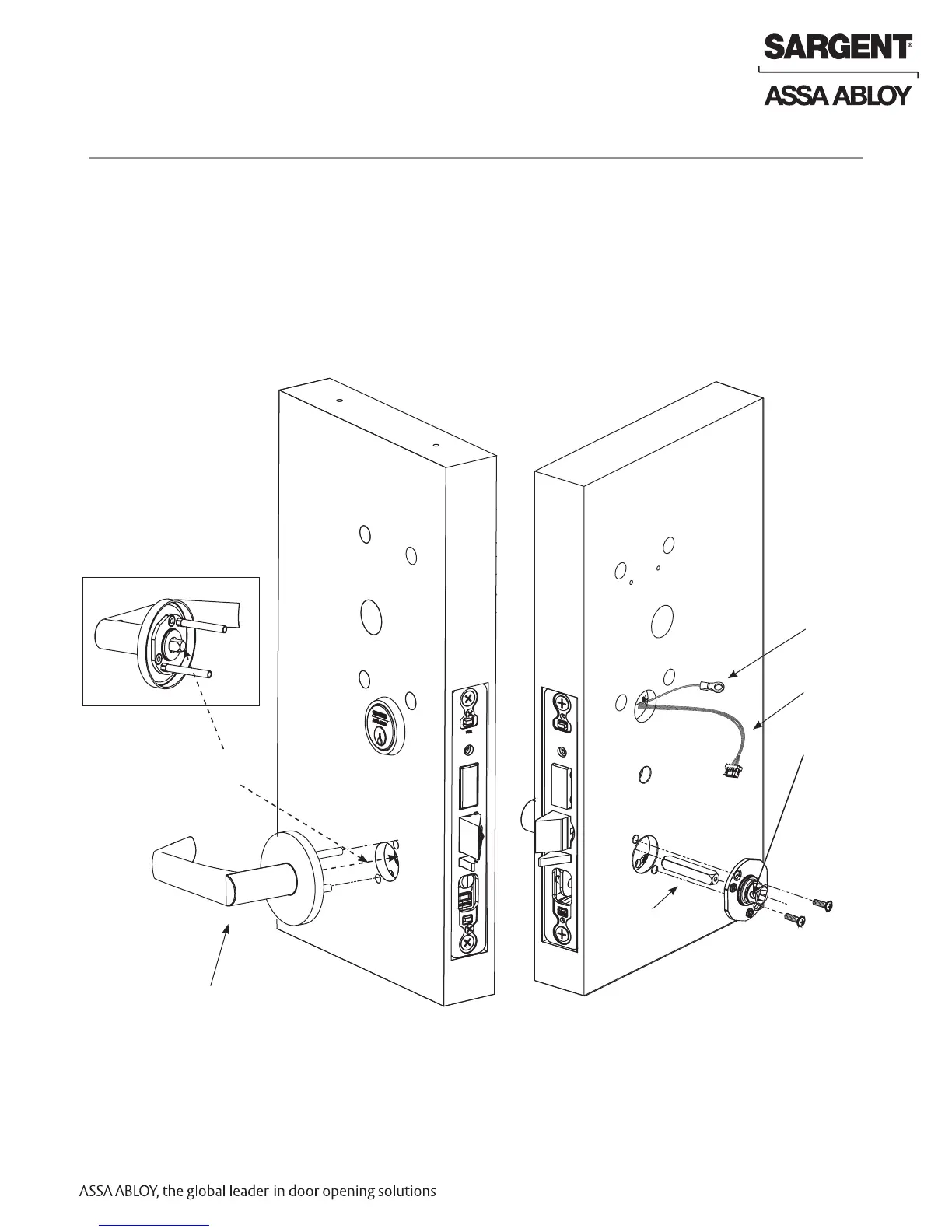

5 Assemble Outside Trim
1. With outside lever horizontal, insert the mounting posts through outside of door and lock body.
Make certain the lever spindle is properly engaged inside the lock body (Fig 5A).
2. On the inside of the door, insert spindle into square hole of mortise lock (Fig 5B).
3. Slide inside adapter and plate assembly over spindle and secure with (2) 8-32 X 5/8” Phillips
oval head and lock washer machine screws.
Note: Ensure that position of set screw hole on inside adapter is oriented to match location of hole in
inside lever handle.
Wire Harness
(From Lock Body)
Spindle
Outside Trim
Spindle
Fig. 5A Detail
Outside Trim
Set Screw Hole
Ground Wire
To Next Page
