Passport 1000 P2 Mortise Lock

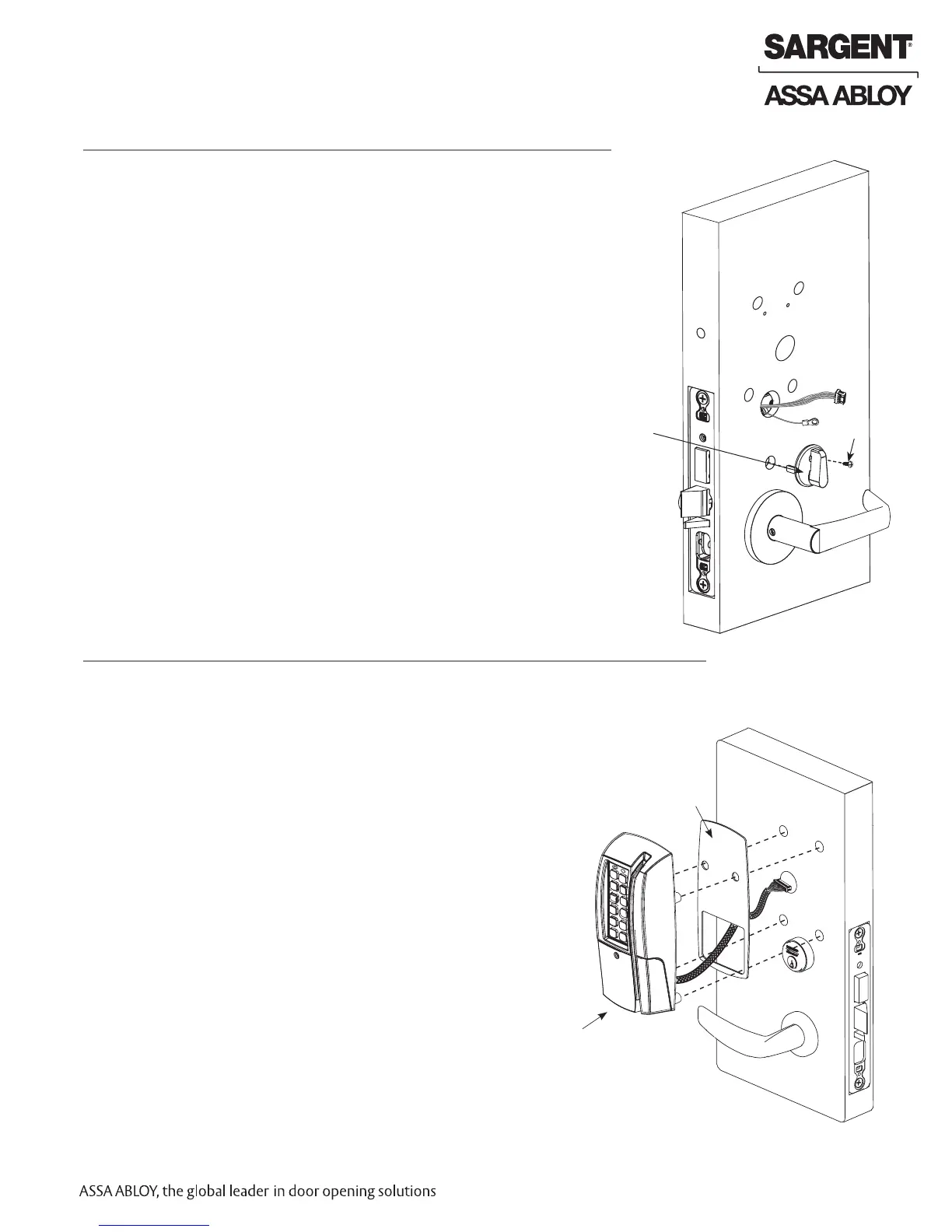

1. Insert thumb turn into preparation hole and engage slot in lock body.
2. Orient mounting plate so screw hole is vertical (aligned with preparation holes).
3. Secure plate with Phillips screw provided.
4. Test thumb turn for function by retracting and projecting the deadbolt
(7976 and 7977 functions only).
7 Install Thumb Turn
Fig. 7
Thumb Turn
Inside of Door
8
Install Gasket (Optional) and Outside Escutcheon
Note: Gasket is optional, for non-fire rated doors only.
For non-fire rated door applications, a gasket (Part number 52-0782)
may be used as a weather seal between the escutcheon and the
outside door surface.
1. Peel off adhesive backing and attach to outside escutcheon.
2. Insert the mounting posts through holes as shown.
3. Feed reader cable through side opening (Fig. 8).
Fig. 8
Escutcheon
Gasket
Outside of Door
Phillips
Screw
To Next Page
