4. Failure to properly support the supply hose will result in
premature failure. Support the supply hose to prevent excessive
flexure. Do not support the supply hose in a way that may add
to the thermal insulation or overheating will result. Do not add
to the hose support block.
5. Always check the calibration of the supply hose's temperature
after installing a new or different hose. Hoses can vary and
each supply hose can produce different temperature results.
(Refer to the supply hose manual for this procedure.)
4.3.2 Supporting Applicator Heads
appropriate brackets using supplied hardware. For the head to
reach operating temperature, insulation spacers must be used
between the applicator head and the mounting bracket, and

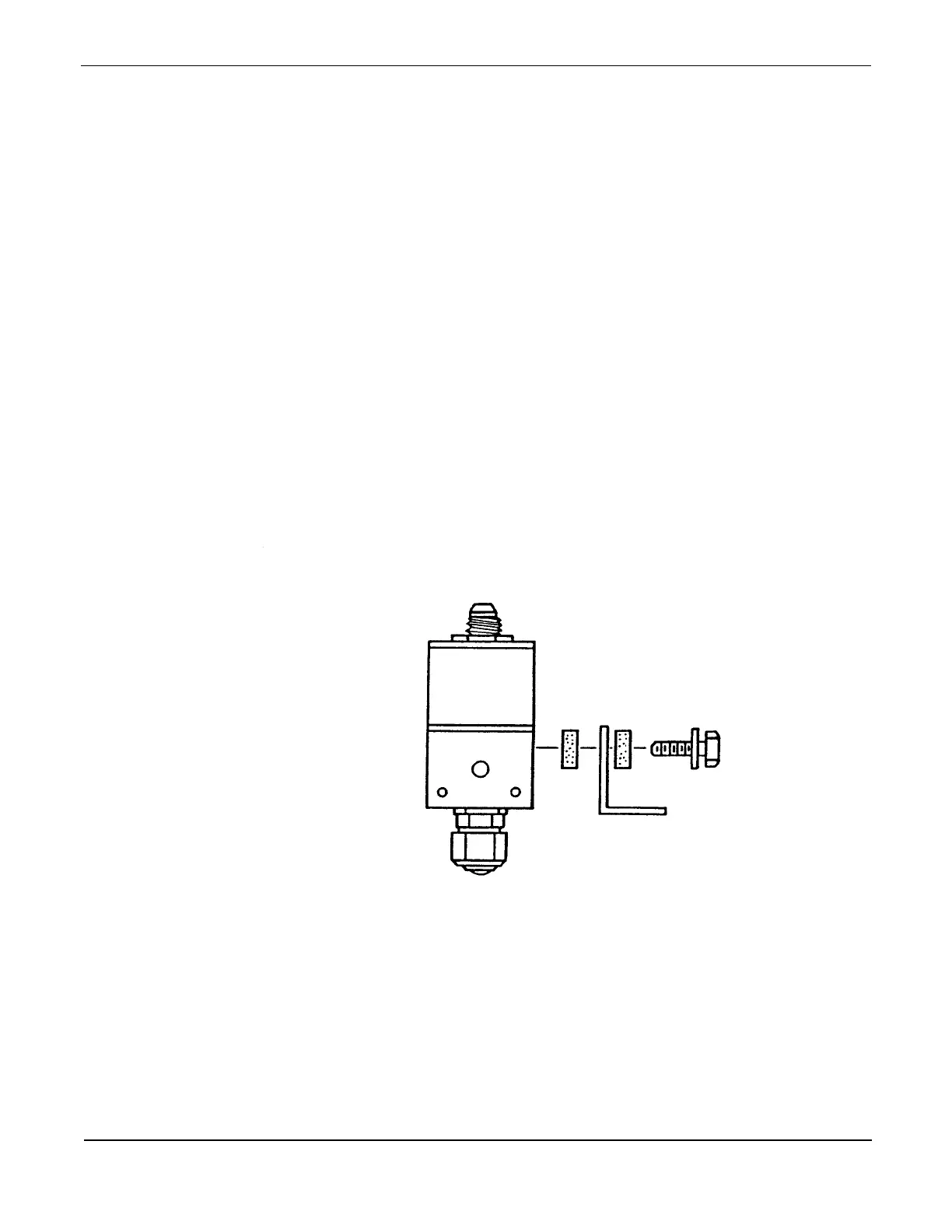

between the mounting bracket and mounting bolt (see illustration
below). The applicator head should be mounted as close as
possible to the application surface. Refer to the applicator head
manual for detailed mounting and operating instructions.
2000191
Applicator heads, such as the Astro Packaging E100, are mounted to
12 KB30, KB50 and KB100 Series Hot Melt Units 19600-159 Rev. A 04/09/09 © Copyright Astro Packaging 2009
