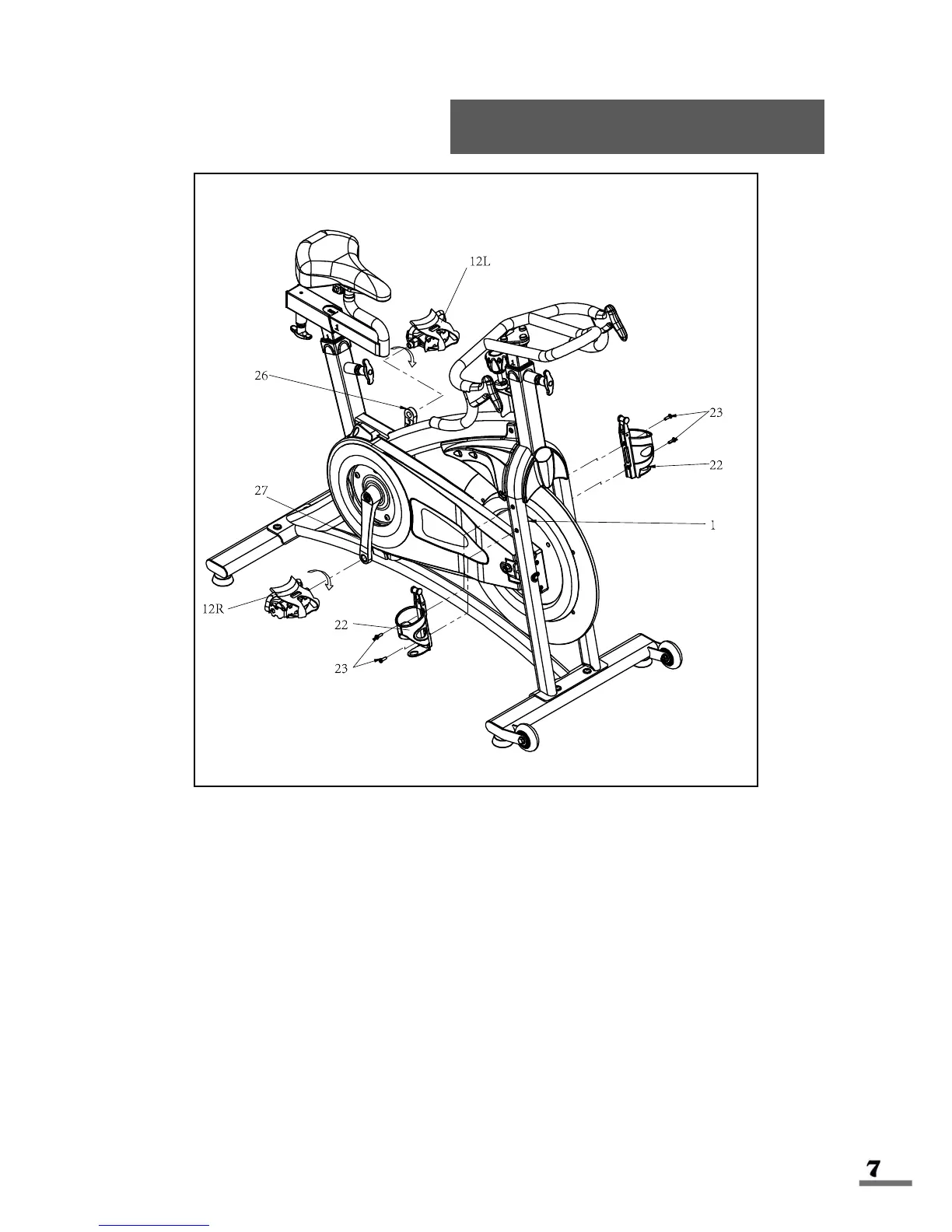

Connect Pedals L/R (No. 12) onto the Left and Right Crank Arms (No. 26 & 27).
Before you begin, immobilize the crank arms by turning the Resistance Knob (No.
58) all the way to the right.
Left Pedal: Align the left pedal, Pedal L (No. 12), with the Left Crank Arm (No. 26) at
90 degrees. Gently insert the pedal into the crank arm, turn the pedal
counter-clockwise as tightly as you can with your hand then tighten and secure with
Combination Wrench (No. C).
Right Pedal: Align the right pedal, Pedal R (No. 12), with the Right Crank Arm (No.
27) at 90 degrees. Gently insert the pedal into the crank arm, turn the pedal
clockwise as tightly as you can with your hand. Tighten and secure with Combination
Wrench (No. C).
Attach the Water Bottle Holders (No. 22) to the Main Frame (No. 1) by first
removing the 4 already preassembled Screws (No. 23), then reattach the Screws
(No. 23) along with the Water Bottle Holders (No. 22) and secure with L Hex
Wrench (No. A).
To Next Page
