Asus AAEON UP Squared V2 - BIOS Prog (CN1); Fan (CN19)

Chapter 2 – Hardware Information 10
Maker Board UPS-EHL01 UP Squared V2

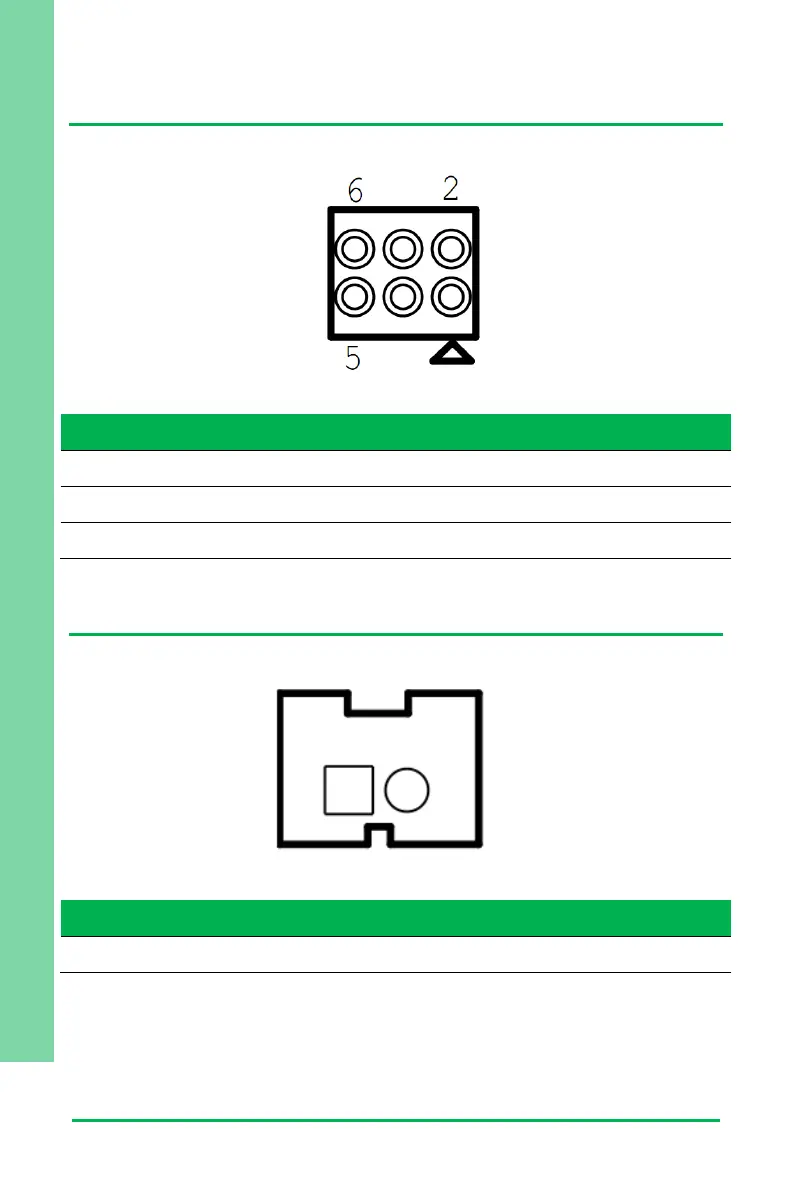

2.3.2 BIOS Prog (CN1)
Pin
Signal
Pin
Signal
1
SPI_BIOS_MISO
2
SPI_BIOS_CLK
3
GND
4
SPI_BIOS_CS0#
5
+VCC_SPI
6
SPI_BIOS_MOSI
2.3.3 Fan (CN19)
Pin
Signal
Pin
Signal
1
FAN_PWR (12V)
2
GND
