Chapter 2 – Hardware Information 15
Maker Board UPS-EHL01 UP Squared V2

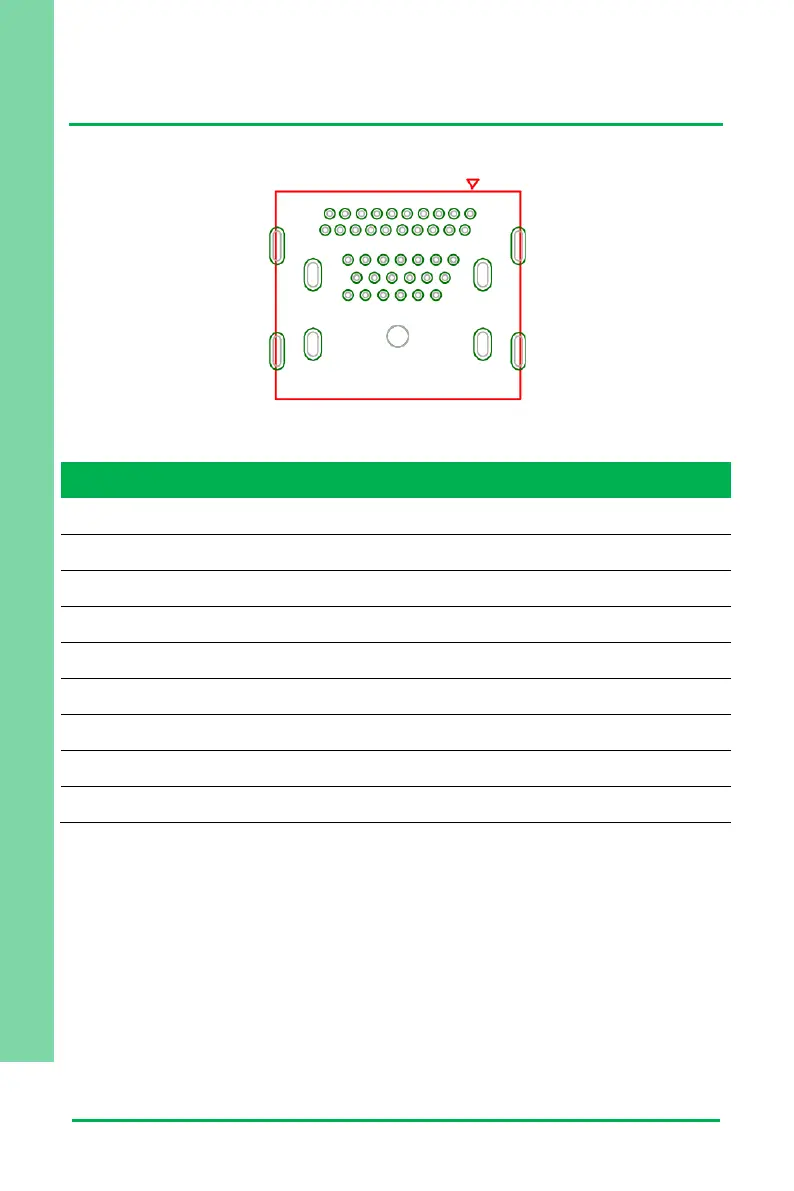

2.3.8 USB 3.0 (CN7)
Pin
Signal
Pin
Signal
1
+V5
2
USB2_ DN1
3
USB2_ DP1
4
GND
5
USB3_RXN_P1
6
USB3_RXP _P1
7
GND
8
USB3_TXN _P1
9
USB3_TXP _P1
10
+V5
11
USB2_ DN2
12
USB2_ DP2
13
GND
14
USB3_RXN _P2
15
USB3_RXP _P2
16
GND
17
USB3_TXN_ P2
18
USB3_TXP_ P2
