Chapter 2 – Hardware Information 12
Maker Board UPS-EHL01 UP Squared V2

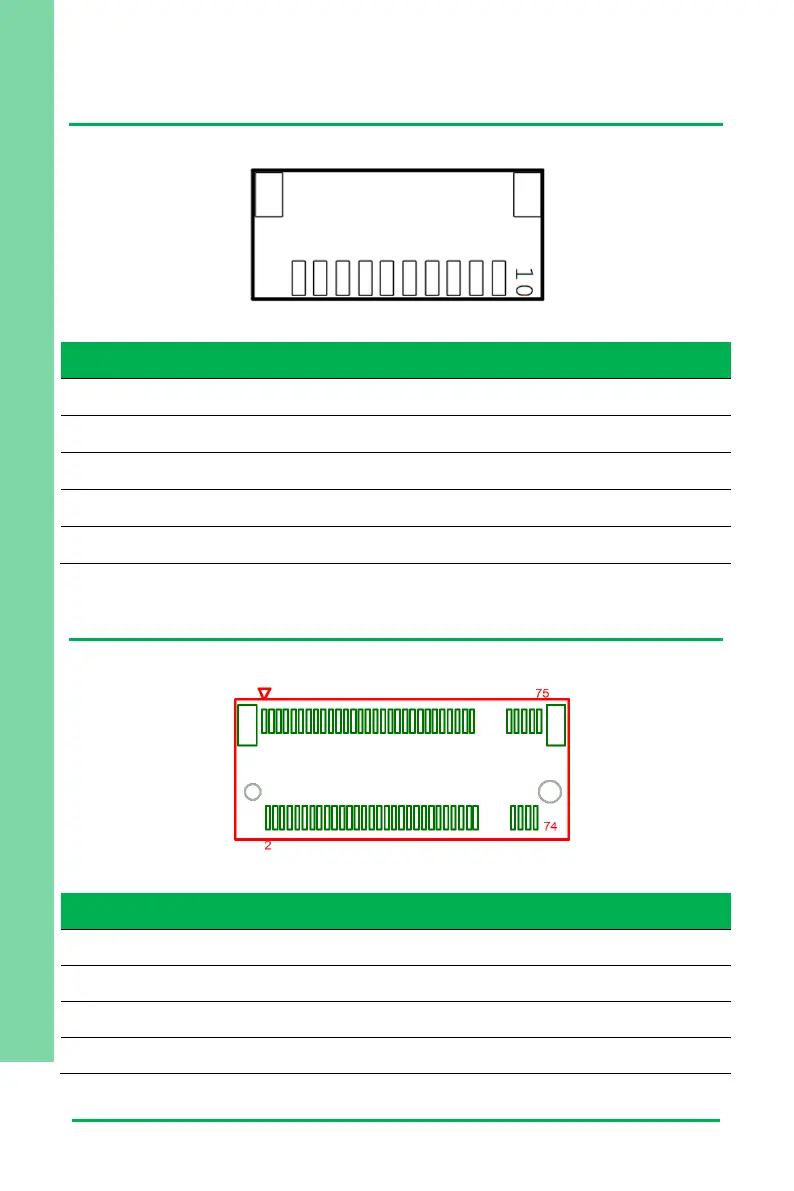

2.3.5 USB Header (CN3)
Pin
Signal
Pin
Signal
1
+5V
2
USB2_DN6
3
USB2_DP6
4
GND
5
+5V
6
USB2_DN7
7
USB2_DP7
8
GND
9
UART1_RXD
10
UART1_TXD
2.3.6 M.2 2280 M-Key (CN4)
Pin
Signal
Pin
Signal
1
GND
2
+3.3V_NGFF
3
NC
4
+3.3V_NGFF
5
NC
6
+3.3V_NGFF
7
NC
8
NC
