Chapter 2 – Hardware Information 24
Maker Board UPS-EHL01 UP Squared V2

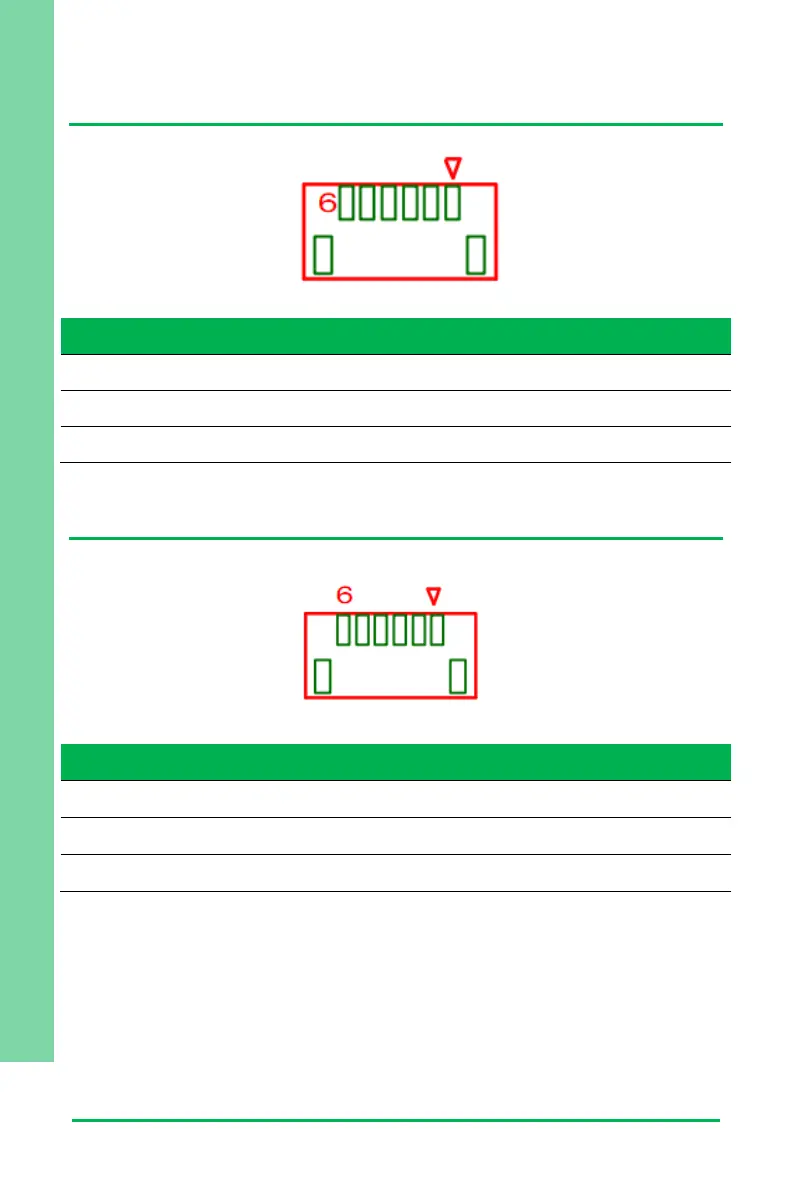

2.3.18 Front panel (CN17)
Pin
Signal
Pin
Signal
1
GND
2
SYSRST#
3
GND
4
PS_ON_SW
5
GND
6
SYS_LED+
2.3.19 Audio (CN18)
Pin
Signal
Pin
Signal
1
LOUT_R
2
LOUT_L
4
AUD_GND
5
MIC_IN_JD
7
AUDIO-JD
8
MIC_L_CN
