Chapter 2 – Hardware Information 22
Maker Board UPS-EHL01 UP Squared V2

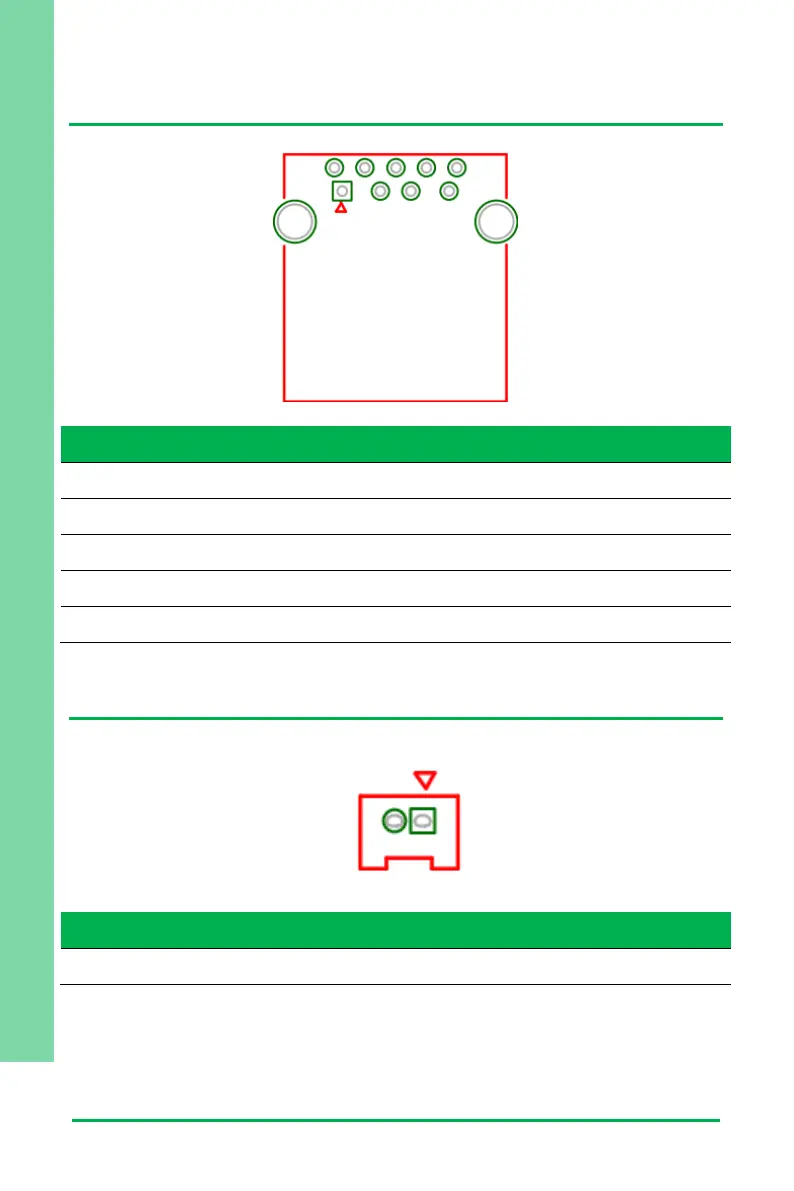

2.3.14 USB 3.0 (CN13)
Pin
Signal
Pin
Signal
1
+V5P0_USB_1
2
USB2_DN3
3
USB2_DP3
4
GND
5
USB3_RXN3
6
USB3_RXP3
7
GND
8
USB3_TXN3
9
USB3_TXP3
-
-
2.3.15 RTC (CN14)
Pin
Signal
Pin
Signal
1
+V3P3A_RTC
2
GND
