Chapter 2 – Hardware Information 23
Maker Board UPS-EHL01 UP Squared V2

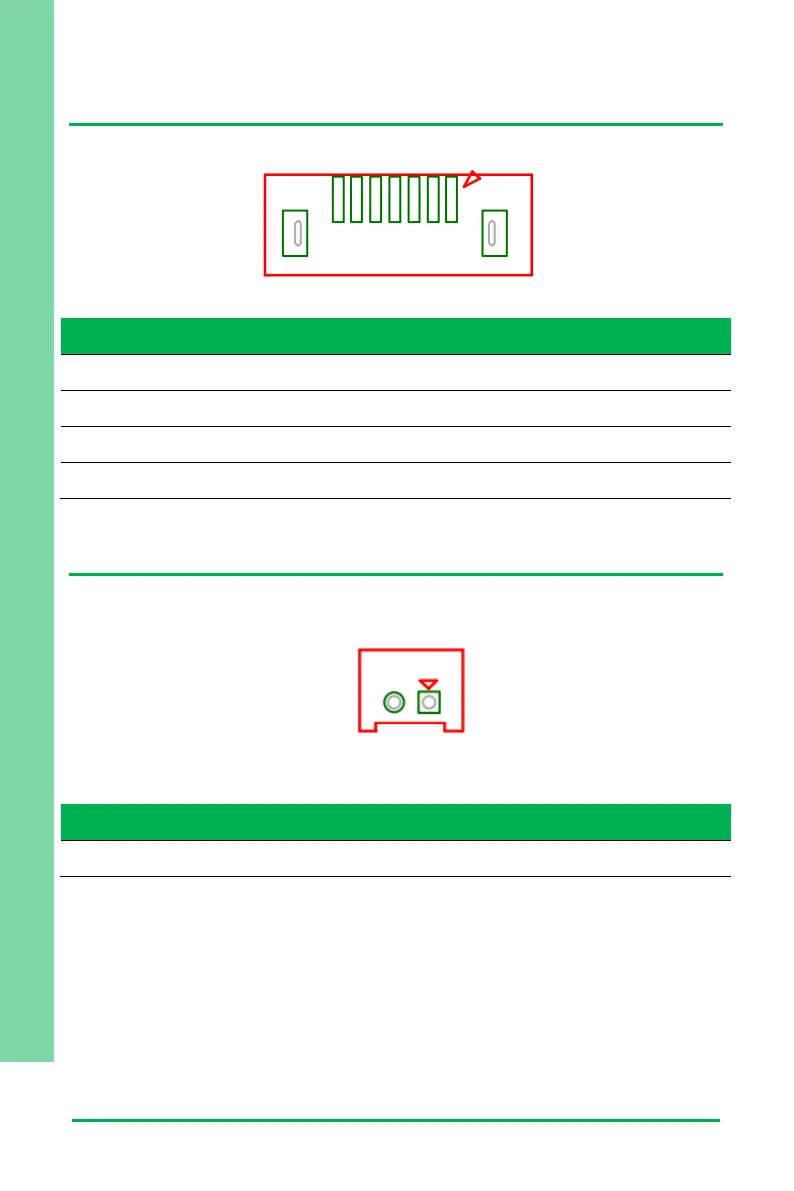

2.3.16 SATA (CN15)
Pin
Signal
Pin
Signal
1
GND
2
SATA_TXP0
3
SATA_TXN0
4
GND
5
SATA_RXN0
6
SATA_RXP0
7
GND
-
-
2.3.17 SATA Power (CN16)
Pin
Signal
Pin
Signal
1
+V5S
2
GND
