1.3.2 CPU heatsink and fan assembly installation
ApplytheThermalInterfaceMaterial
totheCPUheatsinkandCPU
before you install the heatsink and
fan if necessary.

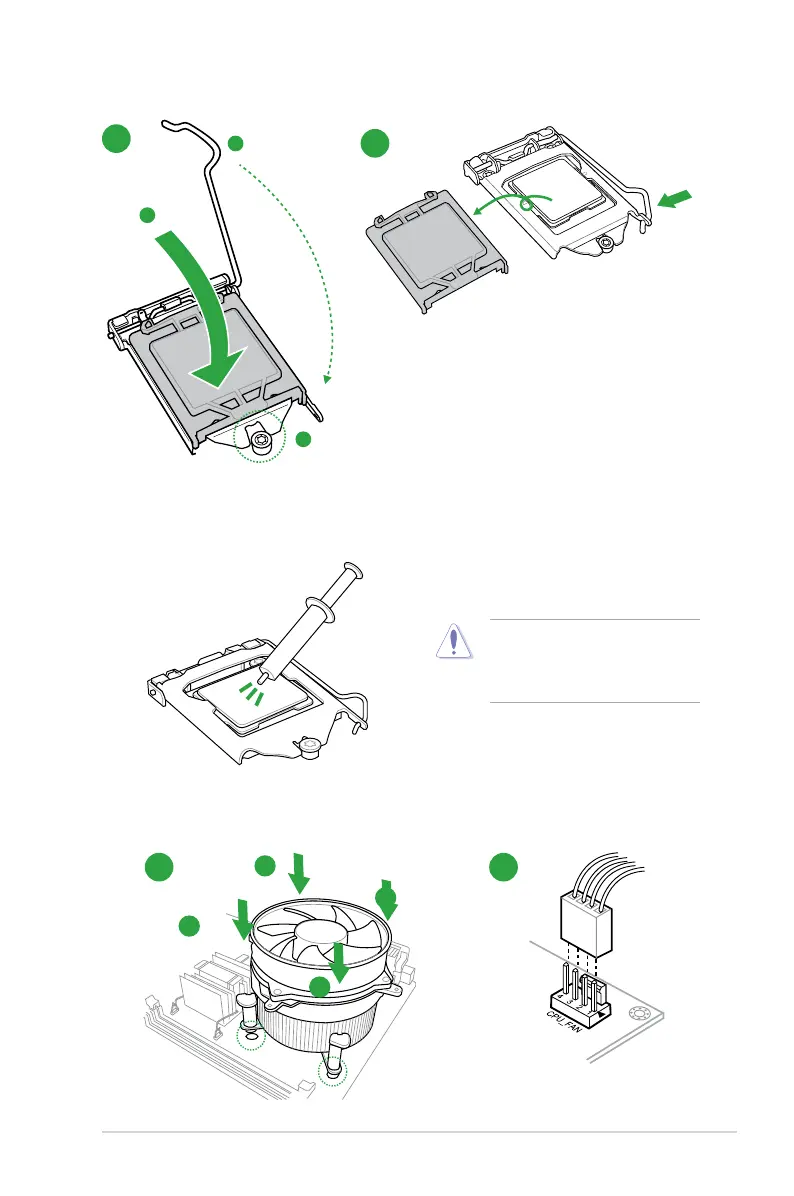

To install the CPU heatsink and fan assembly
2
B
A
A
B
1
ASUS H97M-PLUS
1-5
