3 4
A
B
B
A

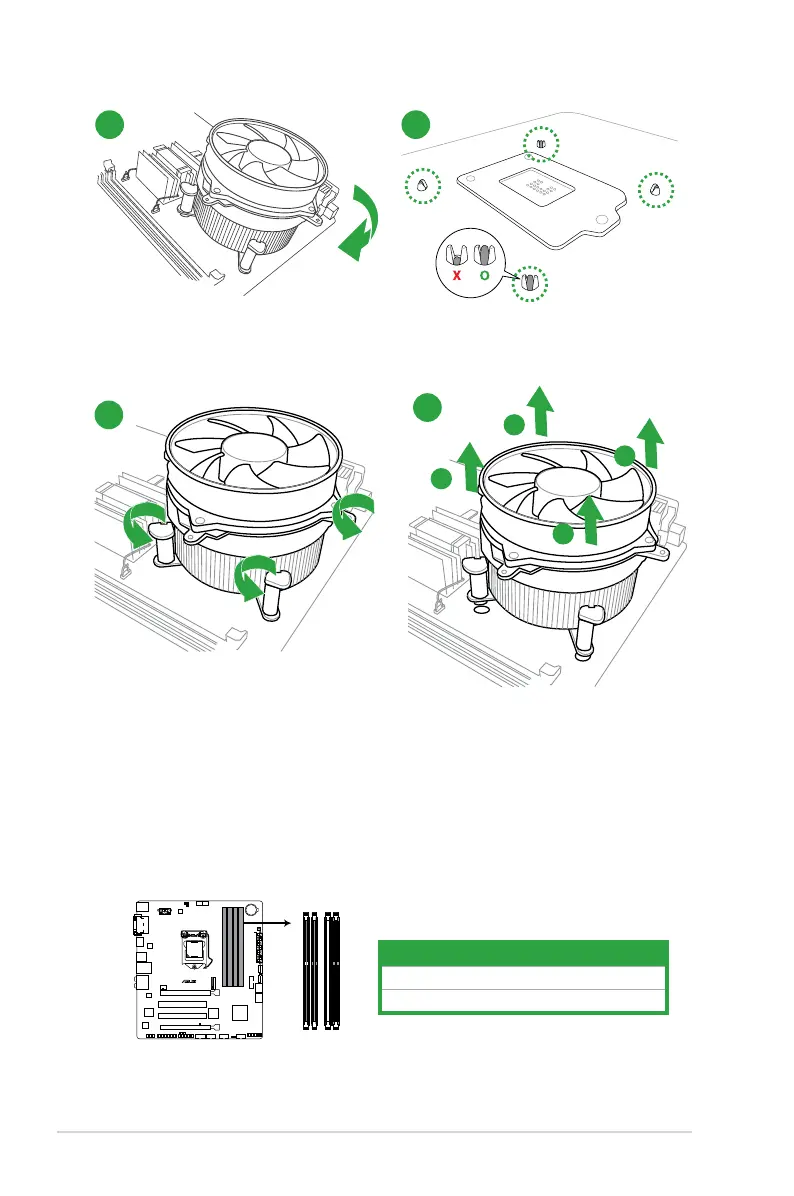

To uninstall the CPU heatsink and fan assembly
2
1
1.4 System memory
1.4.1 Overview
ThismotherboardcomeswithfourDoubleDataRate3(DDR3)DualInlineMemoryModule
(DIMM)sockets.ThegureillustratesthelocationoftheDDR3DIMMsockets:
Channel Sockets
ChannelA DIMM_A1andDIMM_A2
ChannelB DIMM_B1andDIMM_B2
H97M-PLUS
H97M-PLUS 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
1-6
Chapter 1: Product introduction
