3-6
Chapter 3: Software support
3.2.4

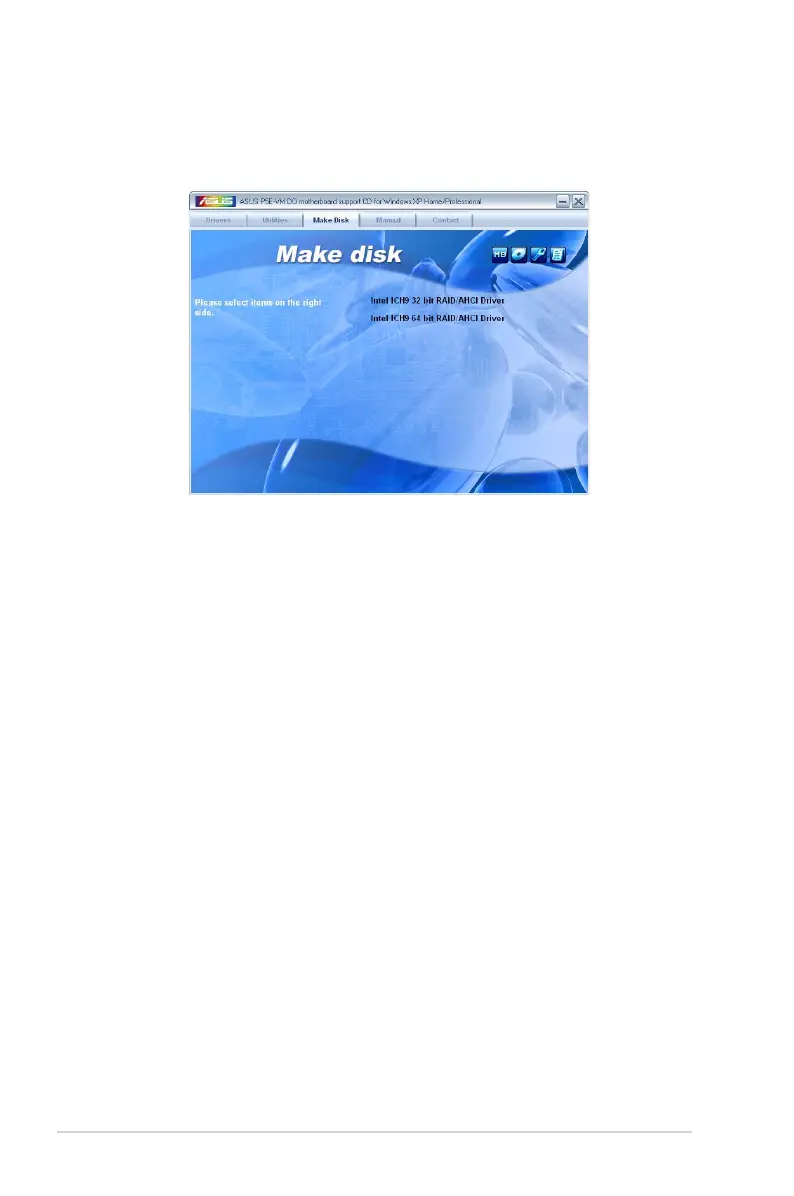

Make Disk menu
The Make Disk menu contains items to create Intel
®
ICH9 RAID/AHCI driver disk.
Intel ICH9 32 bit RAID/AHCI Driver
Allows you to create an Intel ICH9 32 bit RAID/AHCI driver
.
Intel ICH9 64 bit RAID/AHCI Driver
Allows you to create an Intel ICH9 64 bit RAID/AHCI driver
.
