3-8
Chapter 3: Software support
Browse this CD

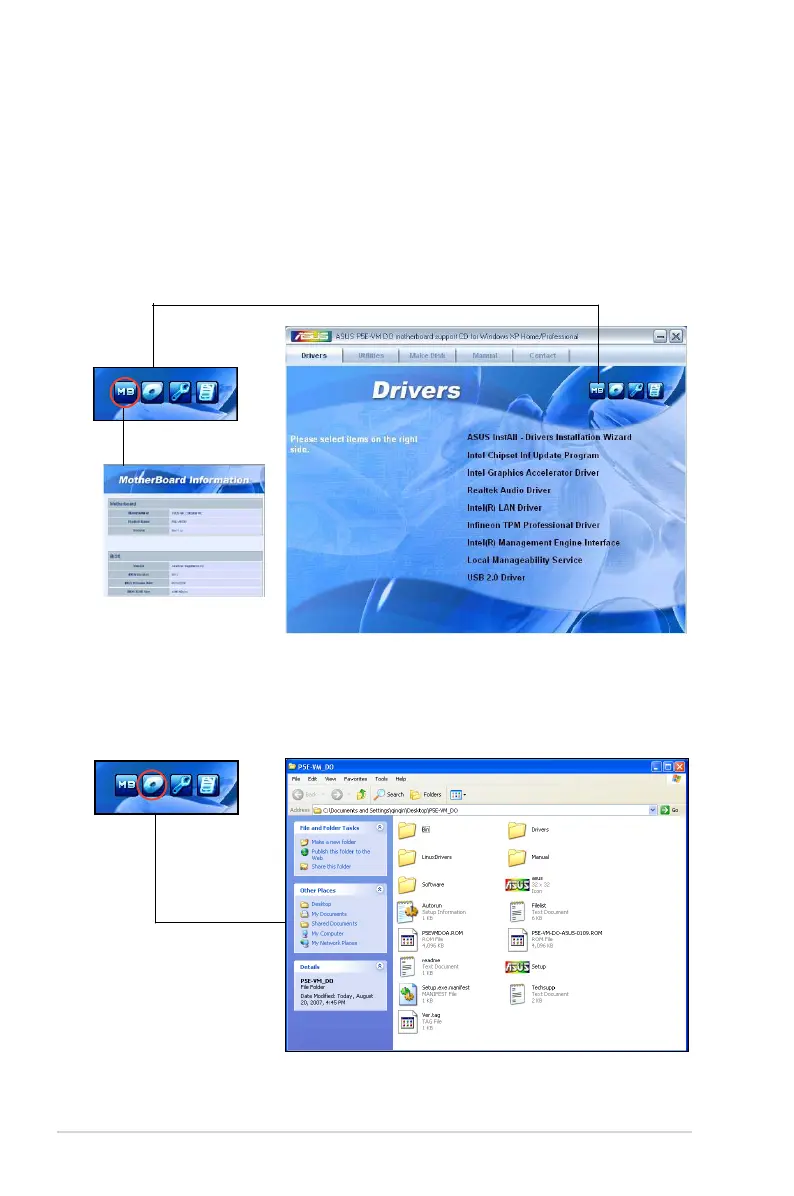

Displays the support CD contents in graphical format.
3.2.7
Other information
The icons on the top right corner of the screen give additional information on the
motherboard and the contents of the support CD. Click an icon to display the
specied information.
Motherboard Info
Displays the general specications of the motherboard.
