ASUS P5E-VM DO 1-31

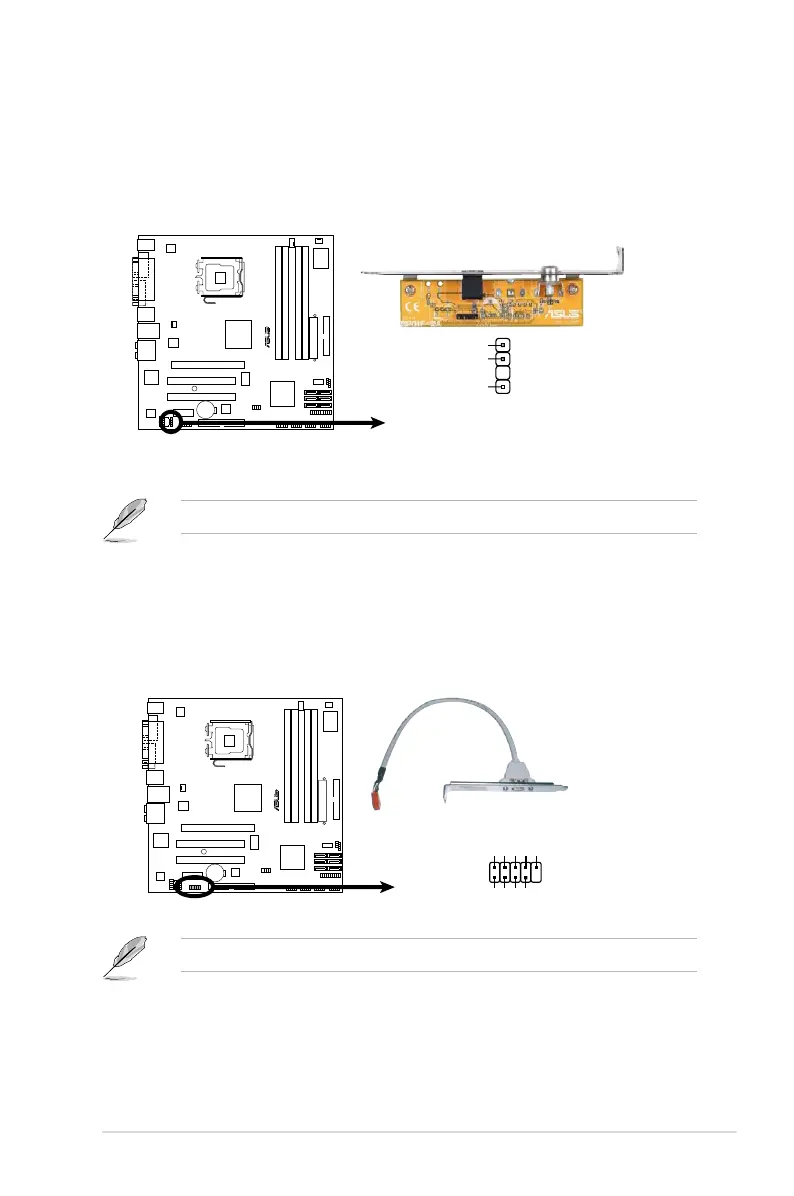

2. Digital Audio connector (4-1 pin SPDIF_OUT)
This connector is for the S/PDIF audio module to allow digital sound output.
Connect one end of the S/PDIF audio cable to this connector and the other
end to the S/PDIF module.
The S/PDIF out module is purchased separately.
R
P5E-VM DO
P5E-VM DO Digital Audio Connector
+5V
SPDIFOUT
GND
SPDIF_OUT
3. IEEE 1394a port connector (10-1 pin IE1394_2)
This connector is for a IEEE 1394a port. Connect the IEEE 1394a module
cable to this connector, then install the module to a slot opening at the back
of the system chassis.
R
P5E-VM DO
P5E-VM DO IEEE 1394a Connector
IE1394_2
1
GND
+12V
TPB1-
GND
TPA1-
+12V
TPB1+
GND
TPA1+
The IEEE 1394a module is purchased separately.
