ASUS P5E-VM DO 1-33

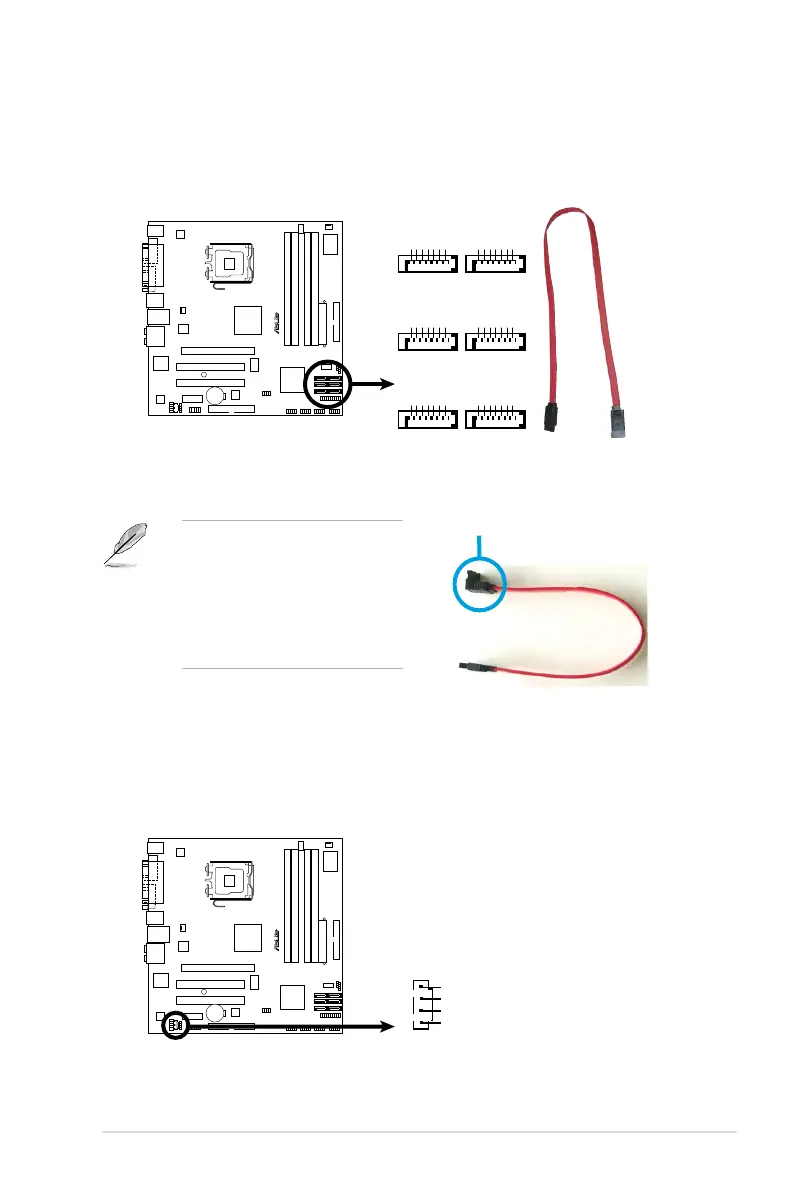

5. ICH9DO Serial ATA connectors (7-pin SATA1[red], SATA2 [red], SATA3
[red], SATA4 [red], SATA5 [red], SATA6 [red])
These connectors are for the Serial ATA signal cables for Serial ATA hard disk
drives.
Connect the right-angle side
of SATA signal cable to SATA
device. Or you may connect the
right-angle side of SATA cable to
the onboard SATA port to avoid
mechanical conict with huge
graphics cards.
right angle side
R
P5E-VM DO
P5E-VM DO SATA connectors
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA1
SATA2
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXP3
RSATA_RXN3
GND
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
SATA3
SATA4
GND
RSATA_TXP5
RSATA_TXN5
GND
RSATA_RXP5
RSATA_RXN5
GND
GND
RSATA_TXP6
RSATA_TXN6
GND
RSATA_RXP6
RSATA_RXN6
GND
SATA5
SATA6
6. Optical drive audio connector (4-pin CD)
These connectors allow you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
R
P5E-VM DO
P5E-VM DO Internal Audio Connector
CD
(black)
Right Audio Channel
Left Audio Channel
Ground
Ground
