Asus P5E-VM DO User Manual

ASUS P5E-VM DO 1-35

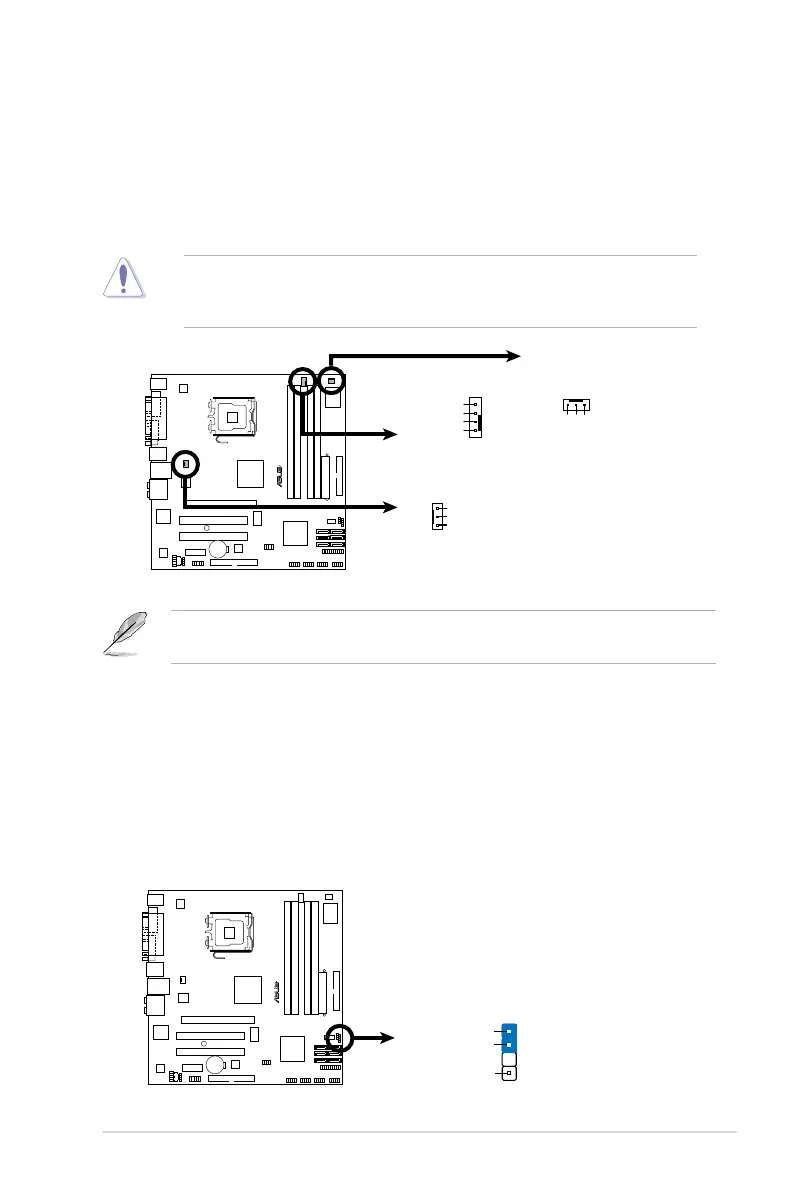

8. CPU, chassis, and power fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN1, 3-pin PWR_FAN)
The fan connectors support cooling fans of 350 mA ~ 2000 mA (24 W max.)
or a total of 1 A ~ 7 A (84 W max.) at +12V. Connect the fan cables to the
fan connectors on the motherboard, making sure that the black wire of each
cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufcient air
ow inside the system may damage the motherboard components. These are
not jumpers! Do not place jumper caps on the fan connectors!
R
P5E-VM DO
P5E-VM DO Fan connectors
CPU_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
Rotation
GND
+12V
CHA_FAN1
Rotation
GND
+12V
PWR_FAN
9. Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch.
The chassis intrusion sensor or switch sends a high-level signal to this connector
when a chassis component is removed or replaced. The signal is then generated
as a chassis intrusion event.
By default , the pin labeled “Chassis Signal” and “ Ground” are shorted with a
jumper cap. Remove the jumper caps only when you intend to use the chassis
intrusion detection feature.
R
P5E-VM DO
P5E-VM DO Chassis Intrusion connector
CHASSIS
+5VSB_MB
Chassis Signal
GND
(Default)
Only the 4-pin CPU_FAN connectors support the ASUS Advanced Q-Fan feature.
This motherboard does not support 3-pin CPU fan.
