1-38 Chapter 1: Product introduction
Q-Connector (system panel)

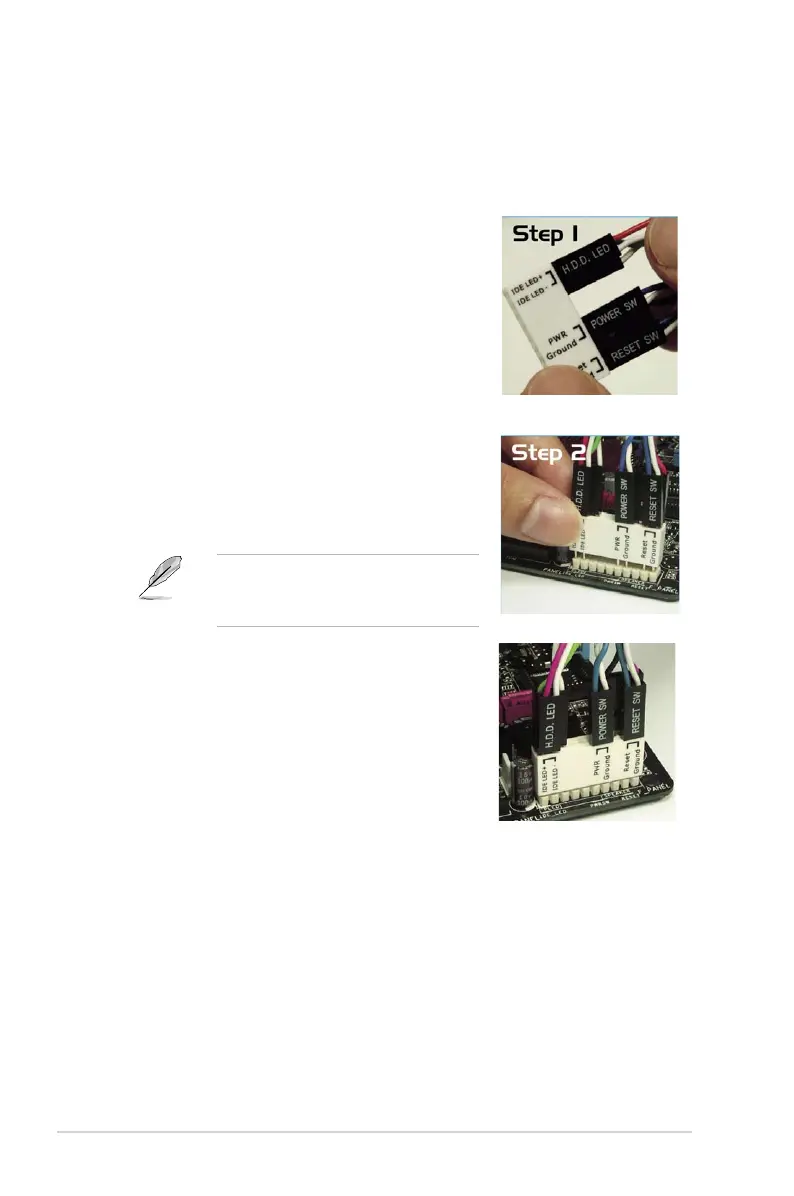

ASUS Q-Connector allows you to easily to connect the chassis front panel
cables to the motherboard. Perform these steps to install ASUS Q-Connector.
Step2.
Carefully connect the ASUS
Q-Connector to the System panel
connector.
Step1.
Connect the front panel cables to their
respective connectors on the ASUS Q-
Connector. Refer to the labels on the
Q-Connector for proper connection and pin
denition.
When installed, the Q-connector appears
as shown.
The ASUS Q-Connector ts only in one
orientation; if it doesn’t t, try reversing
it.
