1-6 Chapter 1: Product introduction
P8H67-M PRO
1.5 Motherboard overview
Before you install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Ensure that you unplug the power cord before installing or removing the motherboard.
Failure to do so can cause you physical injury and damage motherboard components.
1.5.1 Placement direction
When installing the motherboard, ensure that you place it into the chassis in the correct
orientation. The edge with external ports goes to the rear part of the chassis as indicated in
the image below.

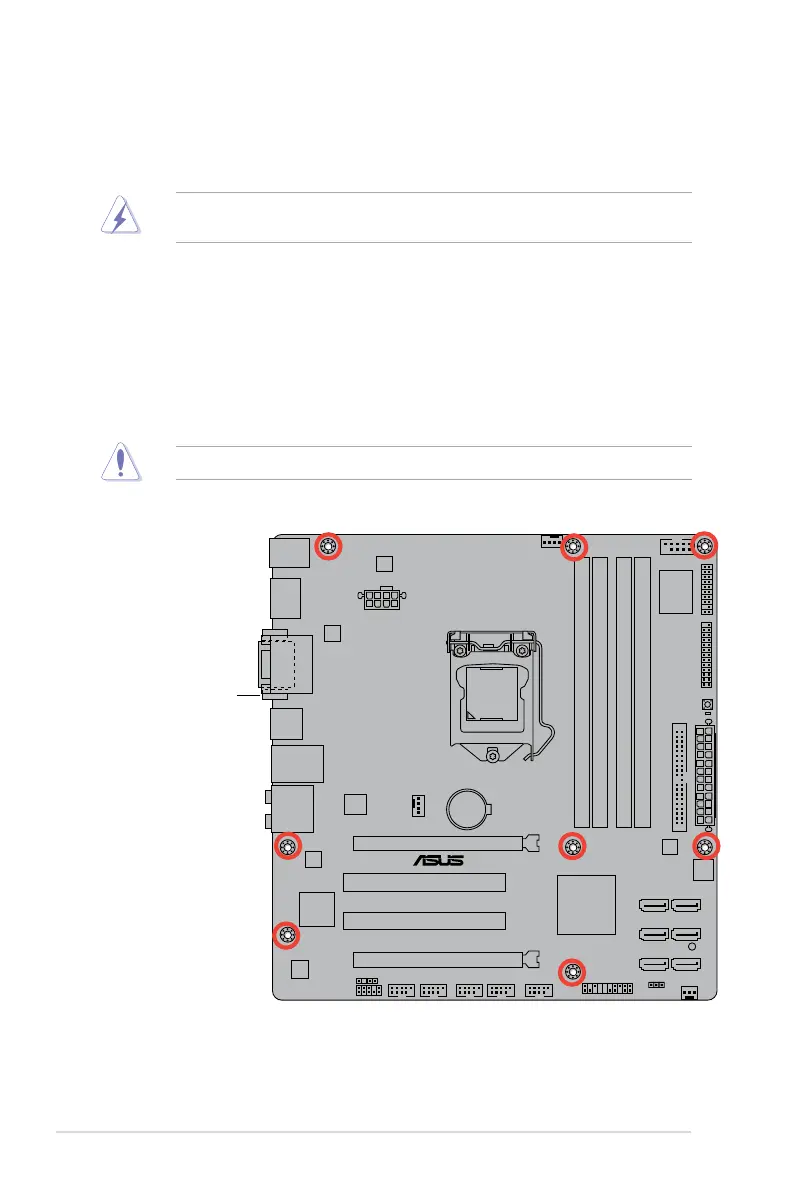

1.5.2 Screw holes
Place eight screws into the holes indicated by circles to secure the motherboard to the
chassis.
Do not overtighten the screws! Doing so can damage the motherboard.
Place this side towards
the rear of the chassis

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus P8H67-M PRO and is the answer not in the manual?

Asus P8H67-M PRO Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetIntel H67
SocketLGA 1155
Maximum Memory32GB
Memory TypeDDR3
PCI Express x16 Slots1 x PCIe 2.0 x16
PCIe 2.0 x1 Slots2
PCI Slots1
SATA 3Gb/s Ports4
SATA 6Gb/s Ports2
USB 3.0 Ports2 (on back panel)
Audio ChipsetRealtek ALC892
RAID SupportRAID 0, 1, 5, 10
Multi-GPU SupportNo
Memory StandardDDR3 1333/1066
USB 2.0 Ports12
Integrated GraphicsYes (Requires a processor with integrated graphics)
Audio8-Channel High Definition Audio
Ethernet1 x Gigabit LAN Controller
Memory Slots4 x DIMM
