ASUS P8H67-M PRO 1-7

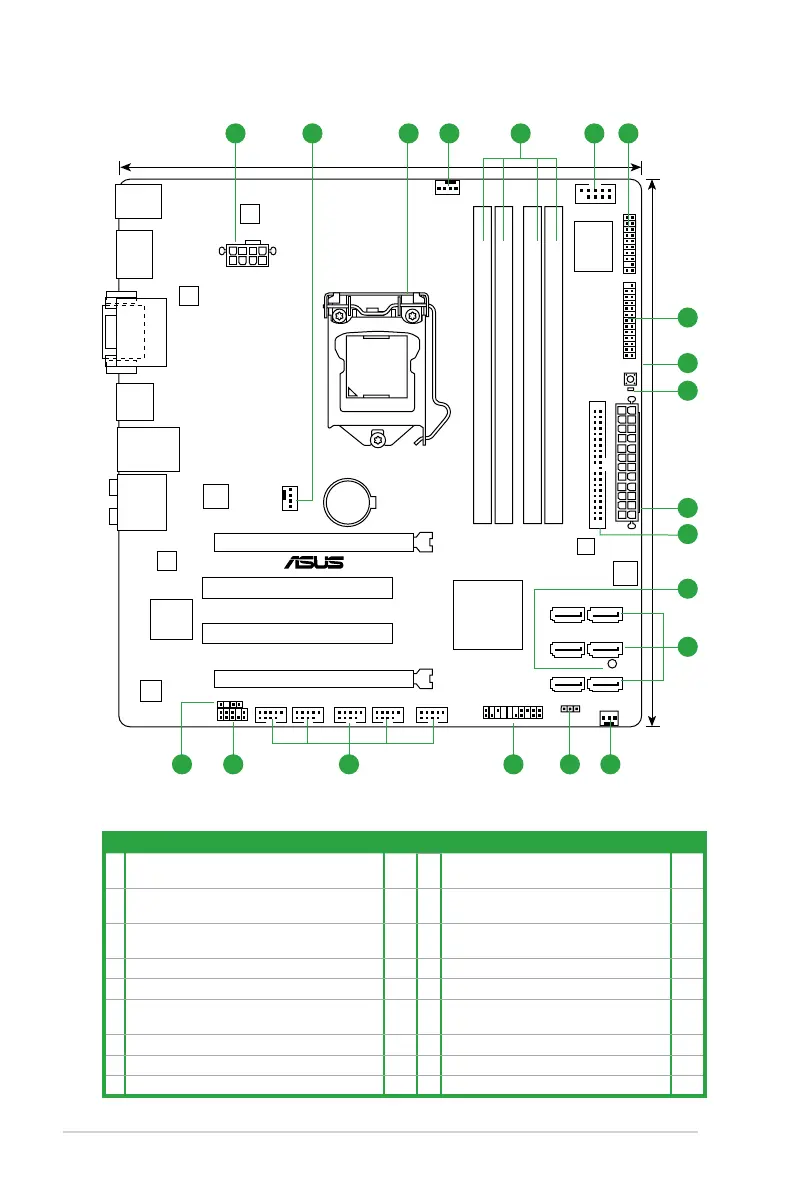

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1.
ATX power connectors (24-pin EATXPWR, 8-pin
ATX12V)
1-22 10. IDE connector (40-1 pin PRI_EIDE) 1-24
2.
CPU,Chassis, and Power fan connectors (4-pin
CPU_FAN, 4-pin CHA_FAN, 3-pin PWR_FAN)
1-21 11.
Onboard LED (SB_PWR) 1-28
3. Intel
®
CPU socket
1-8 12.
Serial ATA connectors (7-pin SATA3G1-4, 7-pin
SATA6G1-2 )
1-20
4. DDR3 DIMM sockets 1-13 13. Clear RTC RAM (3-pin CLRTC) 1-17
5. Serial port connectors (10-1 pin COM1) 1-21 14. System panel connector (20-8 pin F_PANEL) 1-25
6. TPM connector (20-1 pin TPM) 1-26 15.
USB connectors (10-1 pin USB56, USB78,
USB910, USB1112, USB1314)
1-23
7 LPT connector (26-1 pin LPT ) 1-26 16. Front panel audio connector (10-1 pin AAFP) 1-20
8. MemOK! switch 1-27 17. Digital audio connector (4-1 pin SPDIF_OUT) 1-23
9. DRAM LED 1-28
P8H67-M PRO
PCIEX16_1
PCIEX16_2
PCI2
PCI1
LPT
COM1
USB910 USB1112USB56 USB78 USB1314
C
LR
T
C
AAFP
ATX12V
EATXPWR
CPU_FAN
CHA_FAN
PWR_FAN
Lithium Cell
CMOS Power
Super
I/O
ALC
892
RTL
8111E
EPU
ASM
1442
BIOS
VIA
VT6415
Asmedia
1083
Asmedia
1042
SB_PWR
SPDIF_OUT
24.5cm(9.6in)
24.5cm(9.6in)
LGA1155
Intel
®
H67
DDR3 DIMM_A1 (64bit, 240-pin module)
DDR3 DIMM_A2 (64bit, 240-pin module)
DDR3 DIMM_B1 (64bit, 240-pin module)
DDR3 DIMM_B2 (64bit, 240-pin module)
SATA3G_2SATA3G_1
SATA3G_4SATA3G_3
SATA6G_2SATA6G_1
PRI_EIDE
PANEL
TPM
MemOK!
DRAM_LED
AUDIO
KB_USB34
LAN1_USB12
SPDIFO
_HDMI
USB3_12
DVI_VGA
21 43 2 65
8
9
7
12
11
1
10
21315 141617
