Asus P8H67-M PRO User Manual

ASUS P8H67-M PRO 1-23

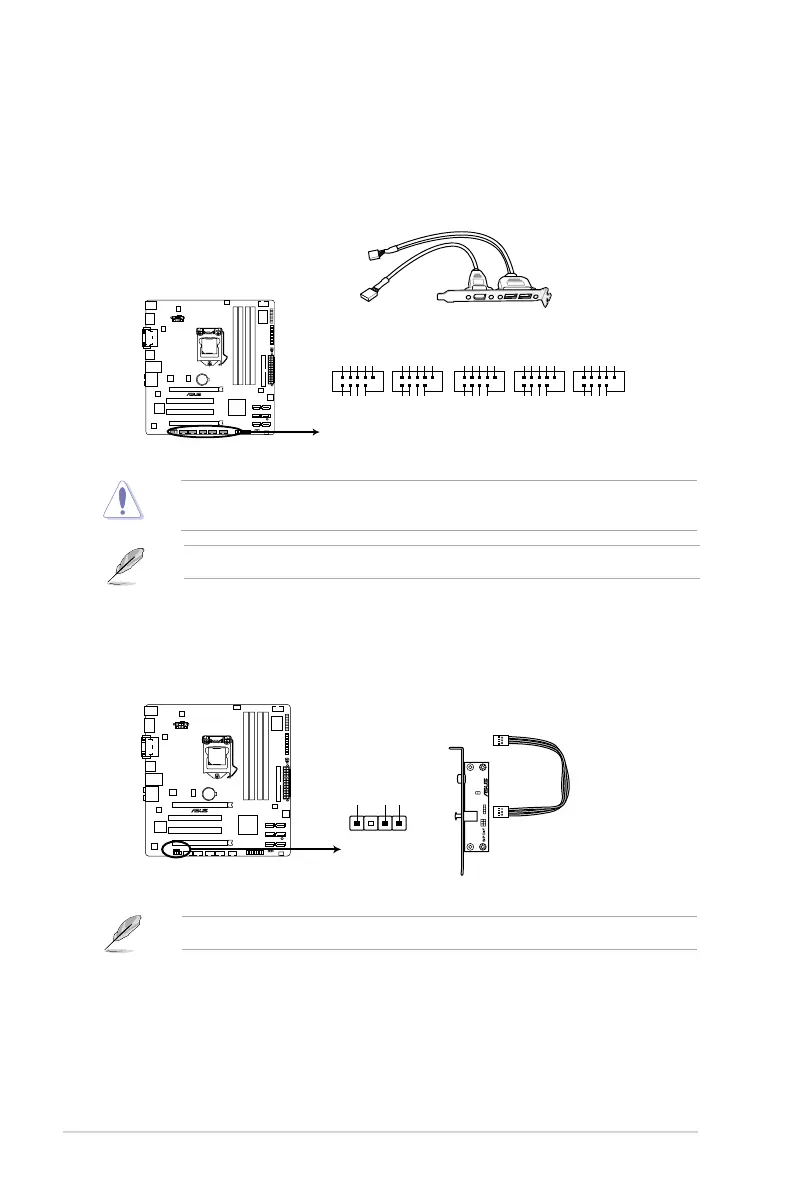

6. USB connectors (10-1 pin USB56, USB78, USB910, USB1112, USB1314 )
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with the USB 2.0 specication that supports up
to 480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
P8H67-M PRO
P8H67-M PRO USB2.0 connectors
USB+5V USB_P12- USB_P12+ GND NC
USB+5V
USB_P11-
USB_P11+
GND
USB1112
PIN 1
USB+5V USB_P14- USB_P14+ GND NC
USB+5V
USB_P13-
USB_P13+
GND
USB1314
PIN 1
USB+5V USB_P10- USB_P10+ GND NC
USB+5V
USB_P9-
USB_P9+
GND
USB910
PIN 1
USB+5V USB_P8- USB_P8+ GND NC
USB+5V
USB_P7-
USB_P7+
GND
USB78
PIN 1
USB+5V USB_P6- USB_P6+ GND NC
USB+5V
USB_P5-
USB_P5+
GND
USB56
PIN 1
7. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.
SPDIF_OUT
+5V SPDIFOUT GND
P8H67-M PRO
P8H67-M PRO Digital audio connector
The S/PDIF module is purchased separately.

Asus P8H67-M PRO Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCI Express x16 Slots	1 x PCIe 2.0 x16
PCIe 2.0 x1 Slots	2
PCI Slots	1
SATA 3Gb/s Ports	4
SATA 6Gb/s Ports	2
USB 3.0 Ports	2 (on back panel)
Audio Chipset	Realtek ALC892
RAID Support	RAID 0, 1, 5, 10
Multi-GPU Support	No
Memory Standard	DDR3 1333/1066
USB 2.0 Ports	12
Integrated Graphics	Yes (Requires a processor with integrated graphics)
Audio	8-Channel High Definition Audio
Ethernet	1 x Gigabit LAN Controller
Memory Slots	4 x DIMM
