ASUS P8H67-M PRO 1-13
1.7 System memory
1.7.1 Overview
The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules
(DIMM) sockets.
A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched
differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for
better performance with less power consumption.

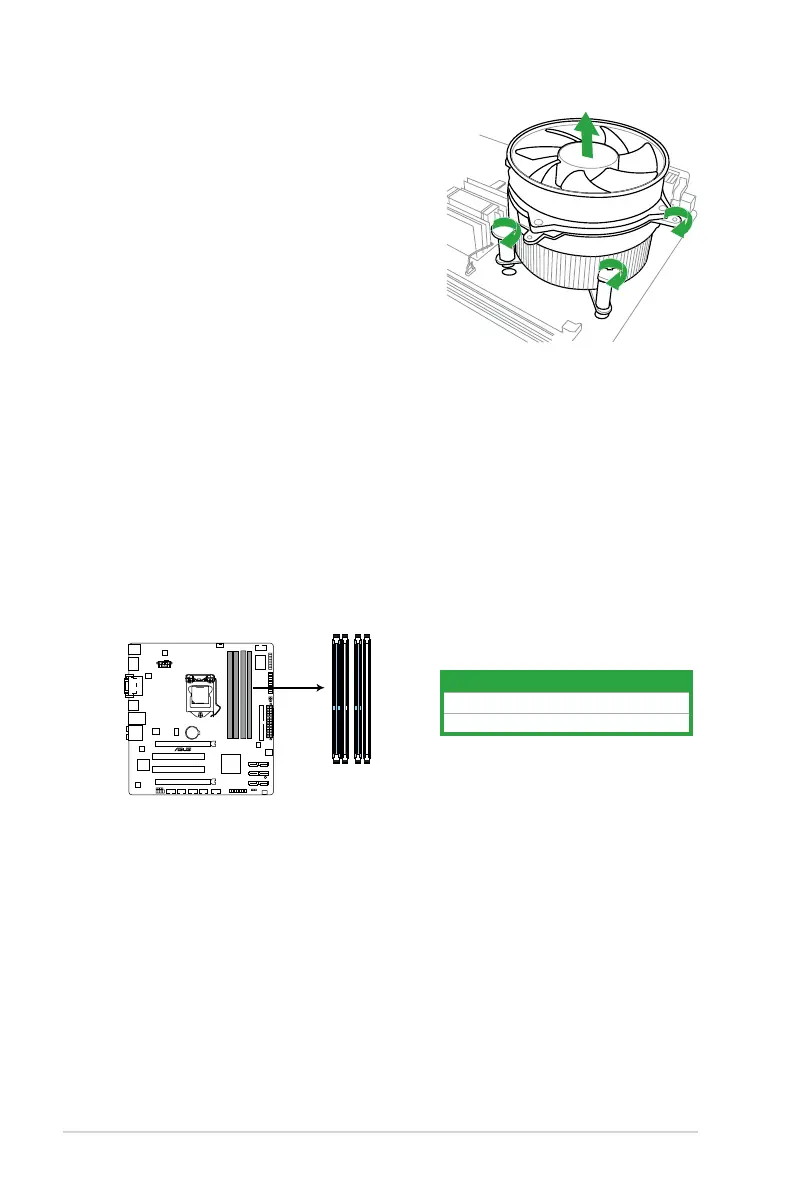

The gure illustrates the location of the DDR3 DIMM sockets:
4. Carefully remove the heatsink and fan
assembly from the motherboard.
5. Rotate each fastener clockwise to ensure
correct orientation when reinstalling.
P8H67-M PRO
P8H67-M PRO 240-pin DDR3 DIMM sockets
DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2
Channel Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2

Asus P8H67-M PRO Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCI Express x16 Slots	1 x PCIe 2.0 x16
PCIe 2.0 x1 Slots	2
PCI Slots	1
SATA 3Gb/s Ports	4
SATA 6Gb/s Ports	2
USB 3.0 Ports	2 (on back panel)
Audio Chipset	Realtek ALC892
RAID Support	RAID 0, 1, 5, 10
Multi-GPU Support	No
Memory Standard	DDR3 1333/1066
USB 2.0 Ports	12
Integrated Graphics	Yes (Requires a processor with integrated graphics)
Audio	8-Channel High Definition Audio
Ethernet	1 x Gigabit LAN Controller
Memory Slots	4 x DIMM
