1-28 Chapter 1: Product introduction
1.12 Onboard LEDs
1. Standby Power LED
The motherboard comes with a standby power LED that lights up to indicate that the
system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should
shut down the system and unplug the power cable before removing or plugging in any
motherboard component. The illustration below shows the location of the onboard LED.
2. DRAM LED
DRAM LED checks the DRAM in sequence during motherboard booting process. If an
error is found , the LED next to the error device will continue lighting until the problem
is solved. This user-friendly design provides an intuitional way to locate the root
problem within a second.

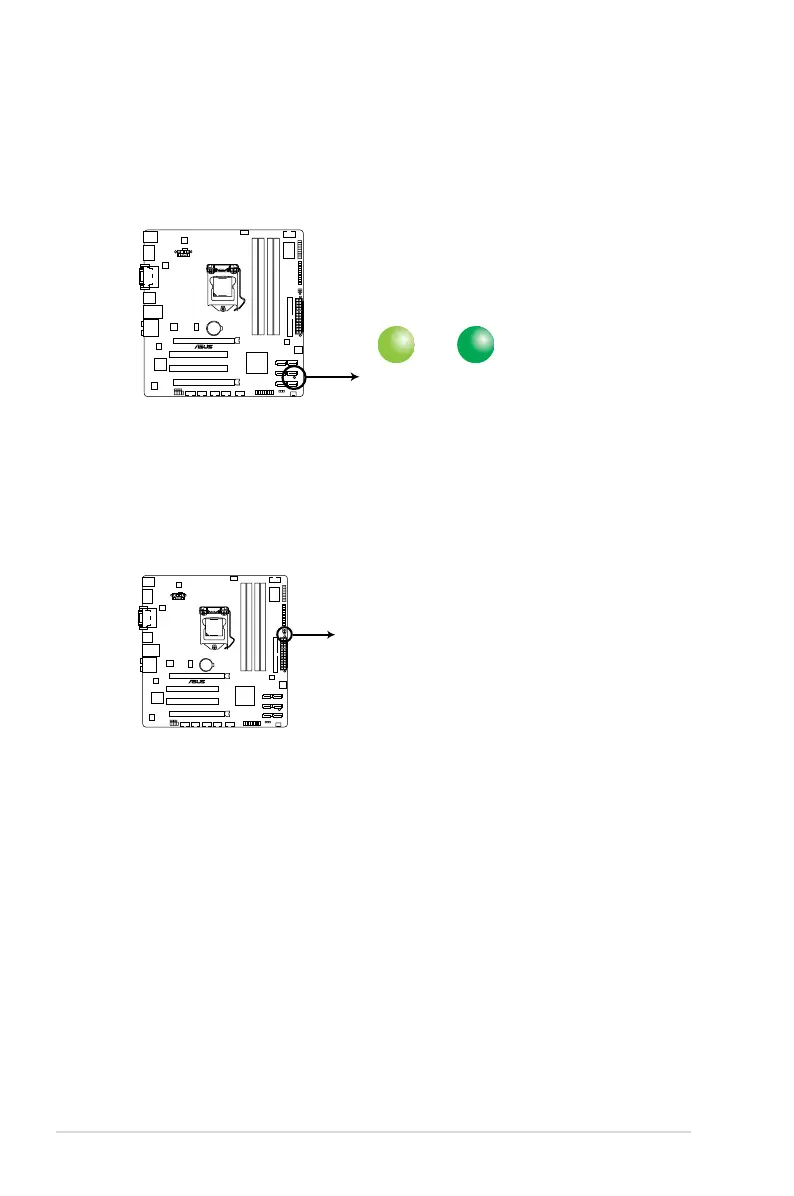

SB_PWR
ON
Standby Power Powered Off
OFF
P8H67-M PRO
P8H67-M PRO Onboard LED
P8H67-M PRO
P8H67-M PRO DRAM LED
DRAM LED

Asus P8H67-M PRO Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCI Express x16 Slots	1 x PCIe 2.0 x16
PCIe 2.0 x1 Slots	2
PCI Slots	1
SATA 3Gb/s Ports	4
SATA 6Gb/s Ports	2
USB 3.0 Ports	2 (on back panel)
Audio Chipset	Realtek ALC892
RAID Support	RAID 0, 1, 5, 10
Multi-GPU Support	No
Memory Standard	DDR3 1333/1066
USB 2.0 Ports	12
Integrated Graphics	Yes (Requires a processor with integrated graphics)
Audio	8-Channel High Definition Audio
Ethernet	1 x Gigabit LAN Controller
Memory Slots	4 x DIMM
