1-26 Chapter 1: Product introduction

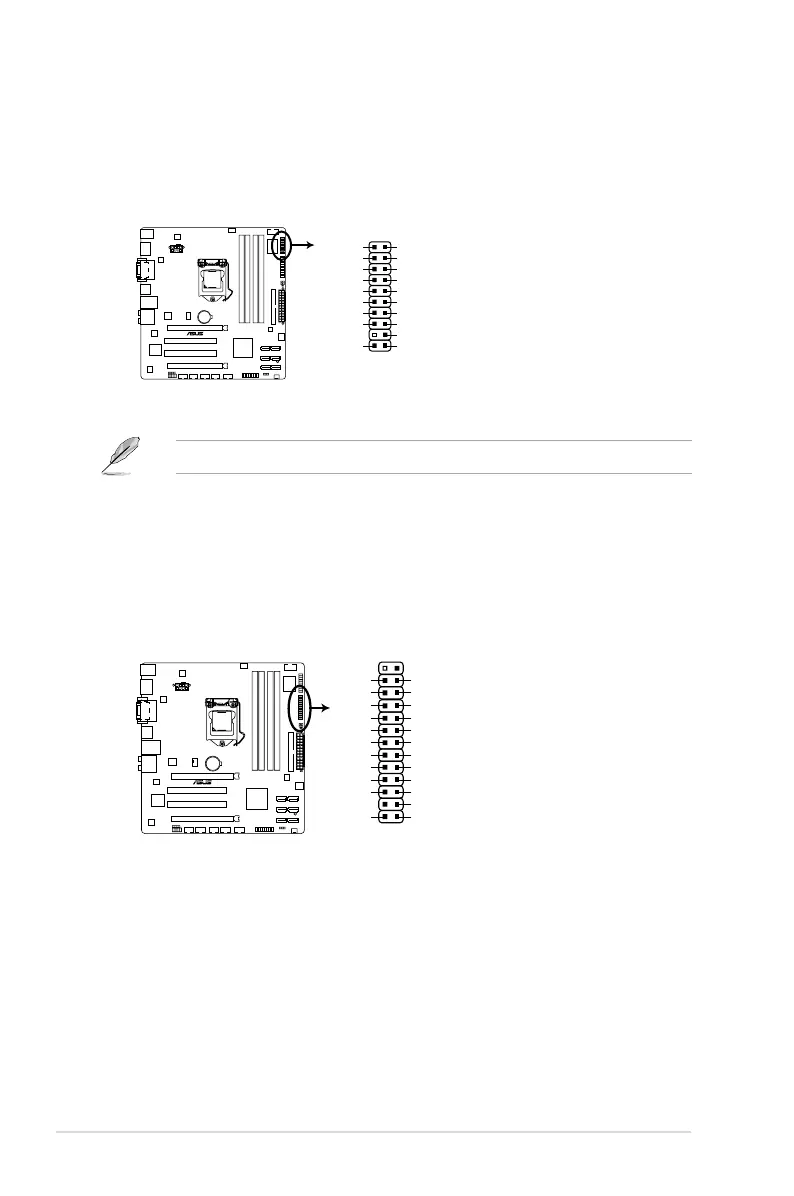

10. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which can securely
store keys, digital certicates, passwords, and data. A TPM system also helps enhance
network security, protects digital identities, and ensures platform integrity.
P8H67-M PRO
P8H67-M PRO TPM Connector
PIN 1
TPM
3.3V
AD0
PWRDW#
NC
PCICLK
FRAME#
PCIRST#
AD3
GND
3.3VSB
AD1
AD2
SERIRQ#
CLKRUN#
GND
NC
GND
NC
NC
The TPM module is purchased separately.
11. LPT connector (26-1 pin LPT)
The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT
standardizes as IEEE 1284, which is the parallel port interface on IBM PC-compatible
computers.
P8H67-M PRO
P8H67-M PRO Parallel Port Connector
PIN 1
LPT
SLCT
PE
BUSY
ACK#
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
STB#
GND
GND
GND
GND
GND
GND
GND
GND
SLIN#
INIT#
ERR#
AFD

Asus P8H67-M PRO Specifications

General

Form Factor	Micro ATX
Chipset	Intel H67
Socket	LGA 1155
Maximum Memory	32GB
Memory Type	DDR3
PCI Express x16 Slots	1 x PCIe 2.0 x16
PCIe 2.0 x1 Slots	2
PCI Slots	1
SATA 3Gb/s Ports	4
SATA 6Gb/s Ports	2
USB 3.0 Ports	2 (on back panel)
Audio Chipset	Realtek ALC892
RAID Support	RAID 0, 1, 5, 10
Multi-GPU Support	No
Memory Standard	DDR3 1333/1066
USB 2.0 Ports	12
Integrated Graphics	Yes (Requires a processor with integrated graphics)
Audio	8-Channel High Definition Audio
Ethernet	1 x Gigabit LAN Controller
Memory Slots	4 x DIMM
