16
Service Manual

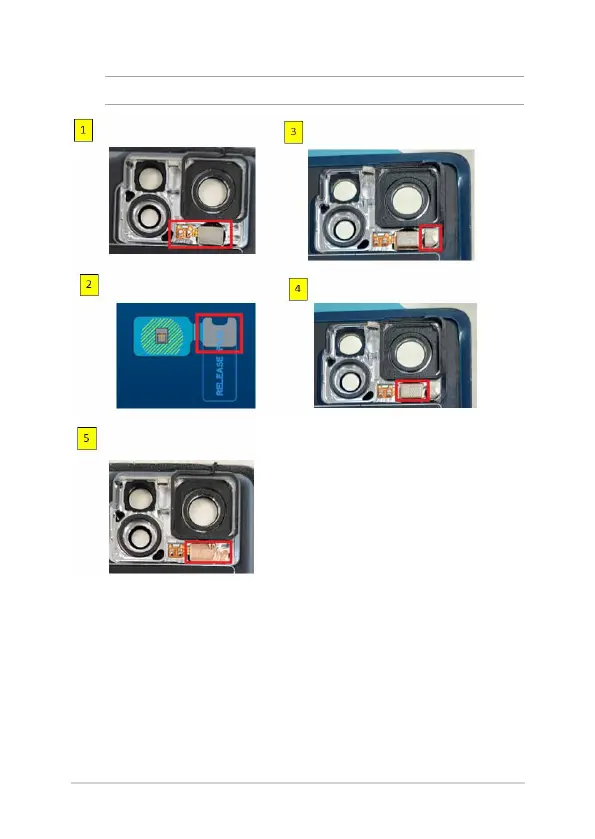

NOTE: The parts in this page are NOT reusable after disassembly.
1. AI2401 ash FPC R2.0
2. AI2401 ash FPC adhesive
3. AI2401 ring conductive sponge 2
4. AI2401 ring conductive sponge 1
5. AI2401 ring copper foil
