Service Manual
41

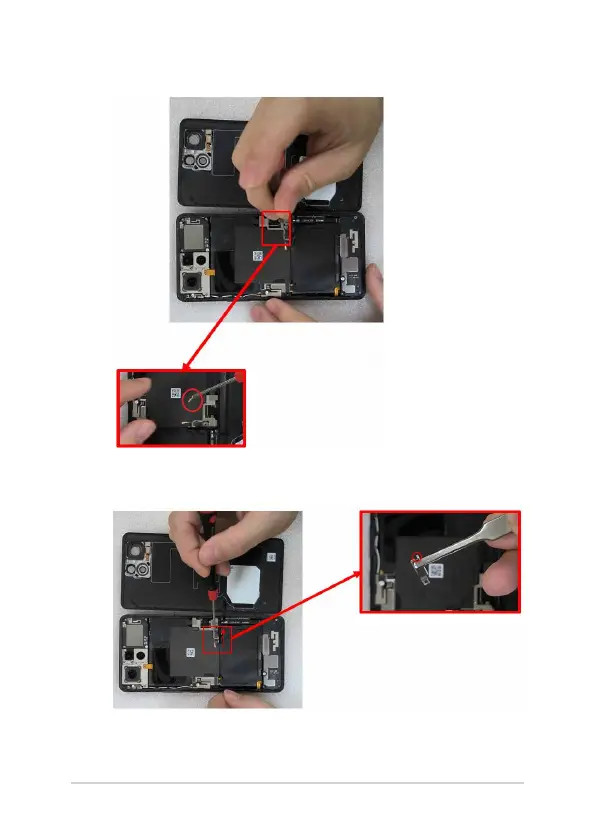

6. Remove the screw from the motherboard.
7. Disassemble the bracket from the motherboard. Push the bracket
in the direction indicated in the illustration below.
