Asus ROG 8 - Page 47

Service Manual 47

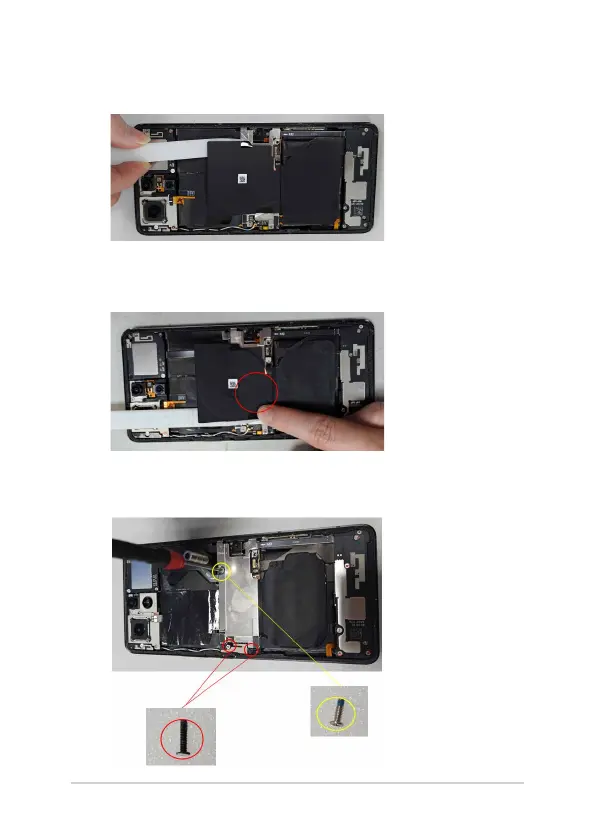

2. Use the prying lever to carefully start disassembling the wireless
RX coil from the left upper corner.
3. To remove the wireless RX coil safely, press down on the Kapton
tape area with your nger and gently use the prying lever to lift
the coil.
Removing the motherboard support bracket
1. Remove the screws.
