Asus ROG 8 - Page 60

60 Service Manual

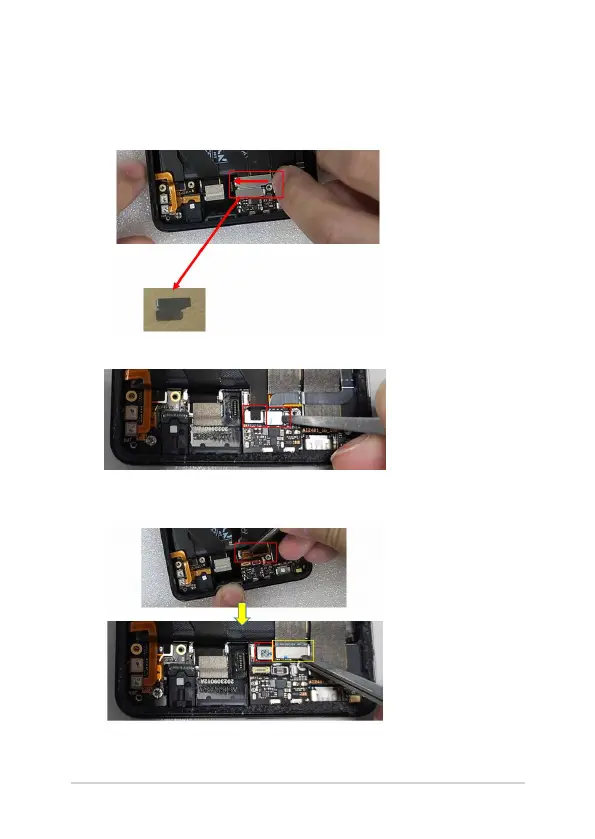

Removing the lower sub-board
1. Disassemble the bracket from the sub-board. Lift in the direction
indicated in the illustration below.
2. Use the tweezers to disassemble the sub-board connectors.
3. Use the tweezers to disconnect the connector after removing the
Mylar lm from it.
