Asus ROG 8 - Page 66

66 Service Manual

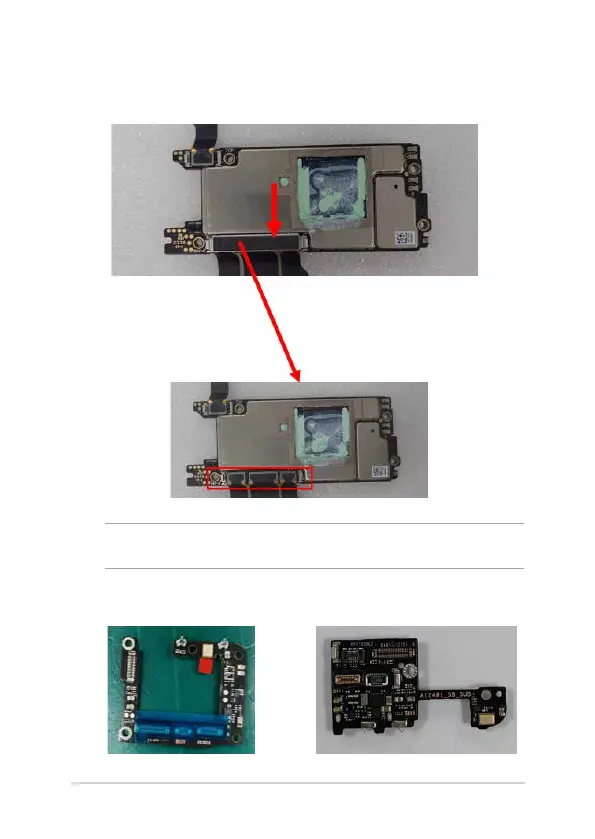

4. Insert the prying lever into the bracket, and lift the bracket to
detach it.
NOTE: The other two microphones on the upper and lower sub-boards
were removed earlier in the disassembly. See their illustration below.
Upper sub-board Lower sub-board
