Service Manual
73

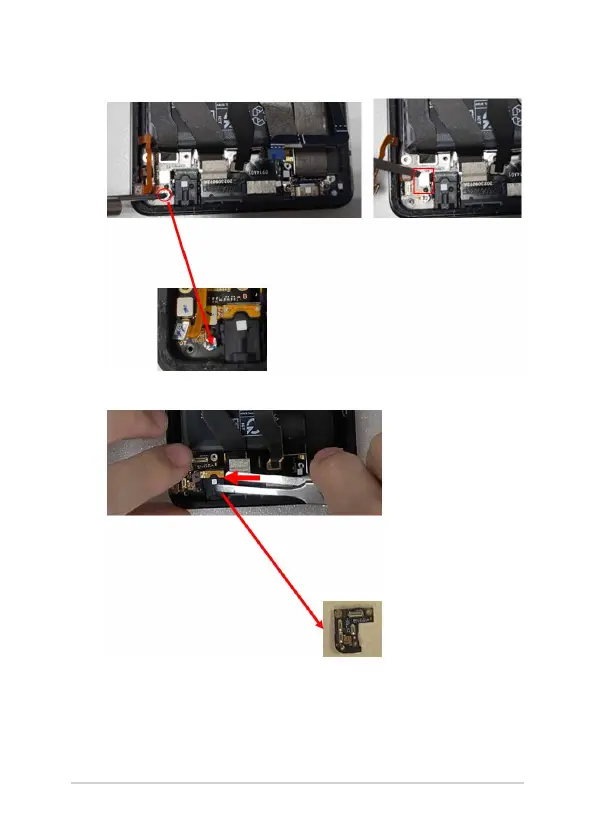

3. Remove the screw, then use the tweezers to remove the connector.
4. Lift the sub-board from the right side.
