80 Service Manual

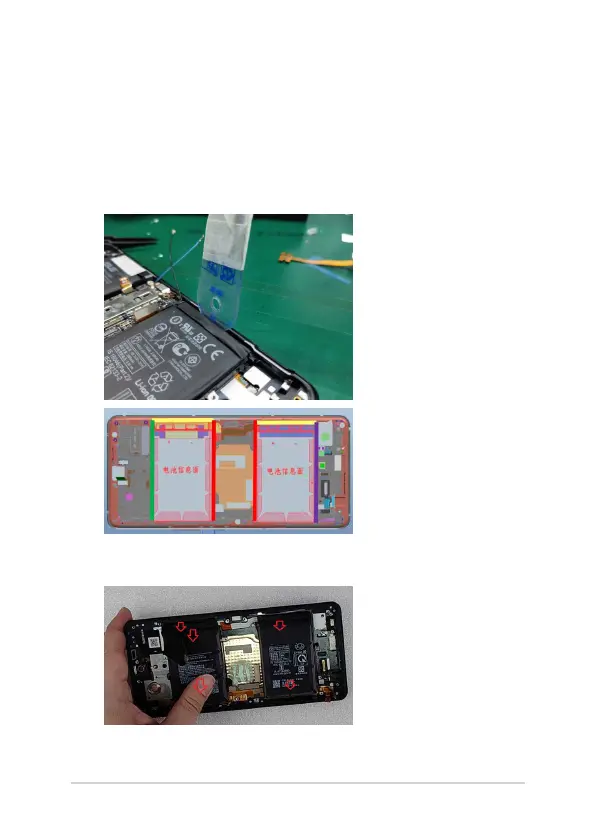

5. Use a thickness gauge to measure the surrounding gaps and
assemble the battery onto the LCD module.
Yellow gap: 0.2~0.3 mm
Red gap: 0.6 mm
Green gap: 0.15~0.2 mm
Purple gap: 0.1~0.15 mm
6. Apply pressure to all battery adhesive areas to ensure a strong
bond.
