ASUS WS C621E SAGE
1-11
Chapter 1

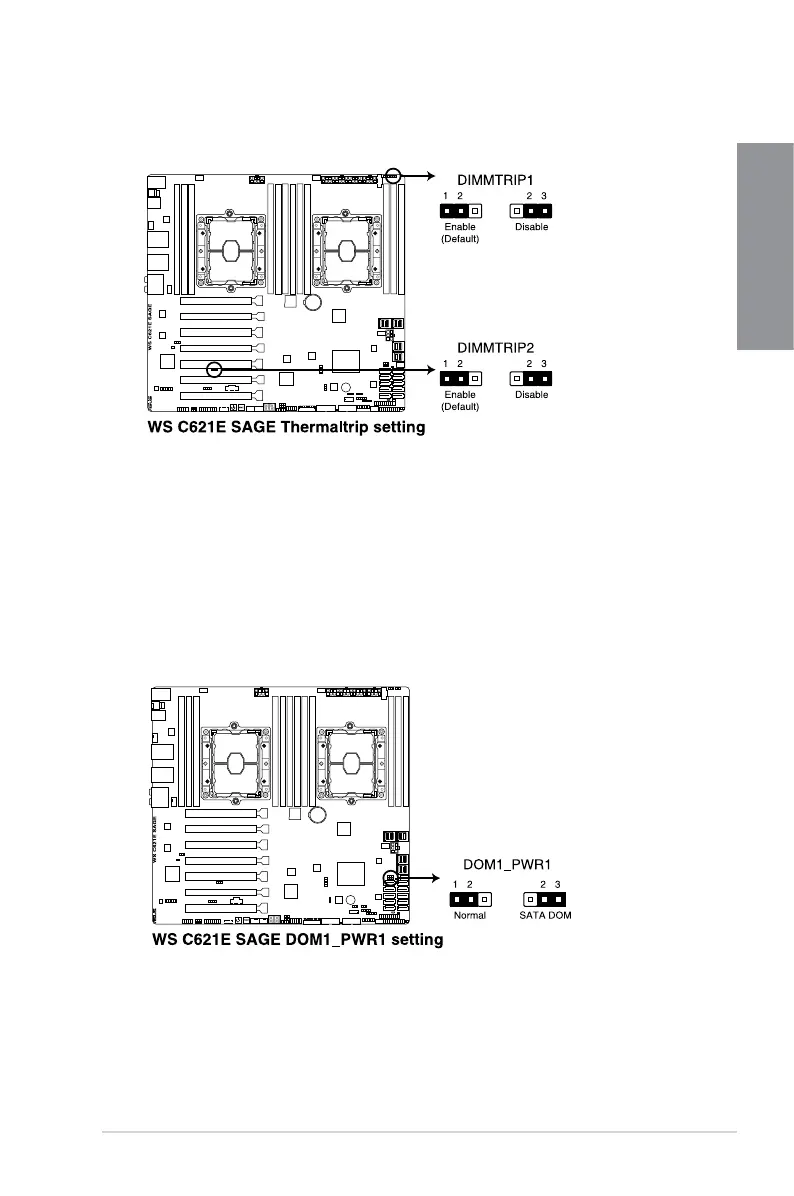

2. DDR4 thermal event setting (3-pin DIMMTRIP1-2)
ThesejumpersallowyoutoenableordisableDDR4DIMMthermalsensingeventpin.
3. SATADOM power setting (3-pin DOM1_PWR1)
ThisjumperallowsSATA5andSATA6tosupportSATADOMwhichdonotneed
externalpowerconnections.Settopins2-3toactivatetheSATA8supportfeature.
