1.1.8 Onboard LEDs
1. Standby Power LED (SBPWR1)
ThemotherboardcomeswithastandbypowerLED.ThegreenLEDlightsupto
indicatethatthesystemisON,insleepmode,orinsoft-offmode.Thisisareminder
thatyoushouldshutdownthesystemandunplugthepowercablebeforeremovingor

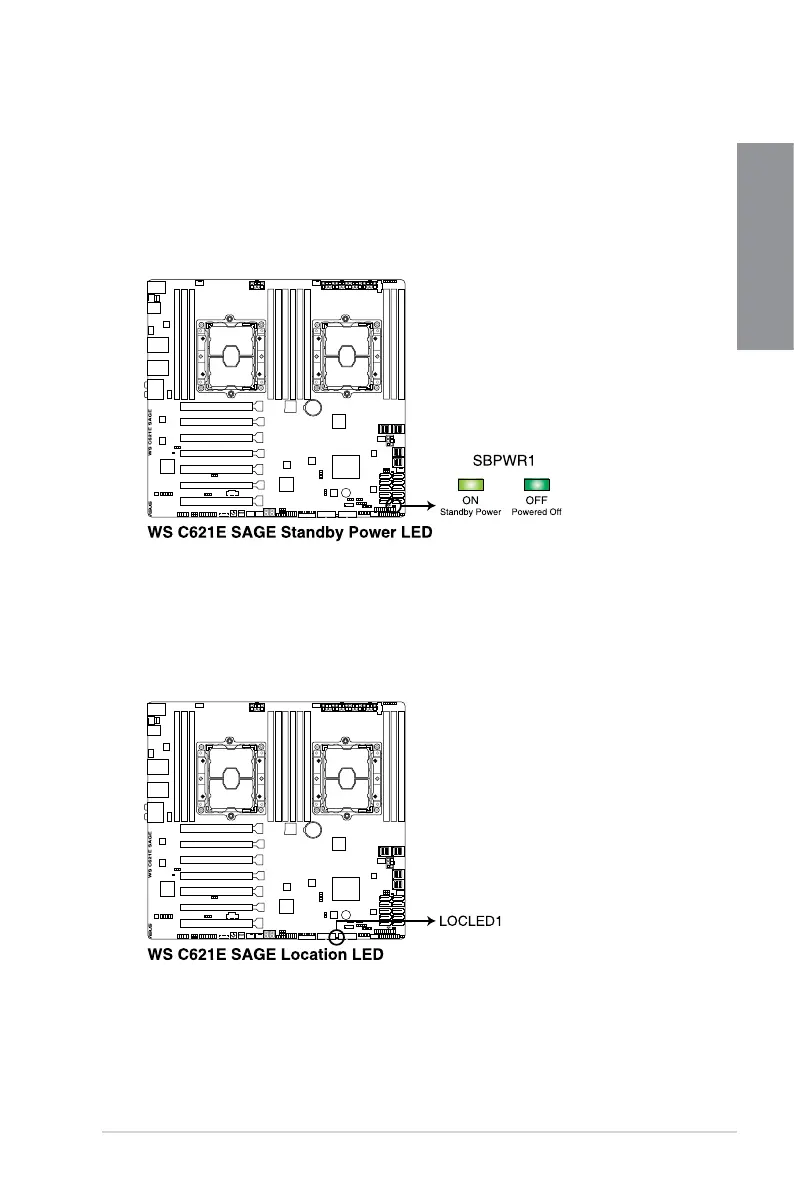

plugginginanymotherboardcomponent.Theillustrationbelowshowsthelocationof
theonboardLED.
2. Location LED (LOCLED1)
ThisonboardLEDlightsupwhentheLocationbuttonontheserverispressedorwhen
triggeredbyasystemmanagementsoftware.TheLocationLEDhelpsvisuallylocate
andquicklyidentifytheserverinerroronaserverrack.
