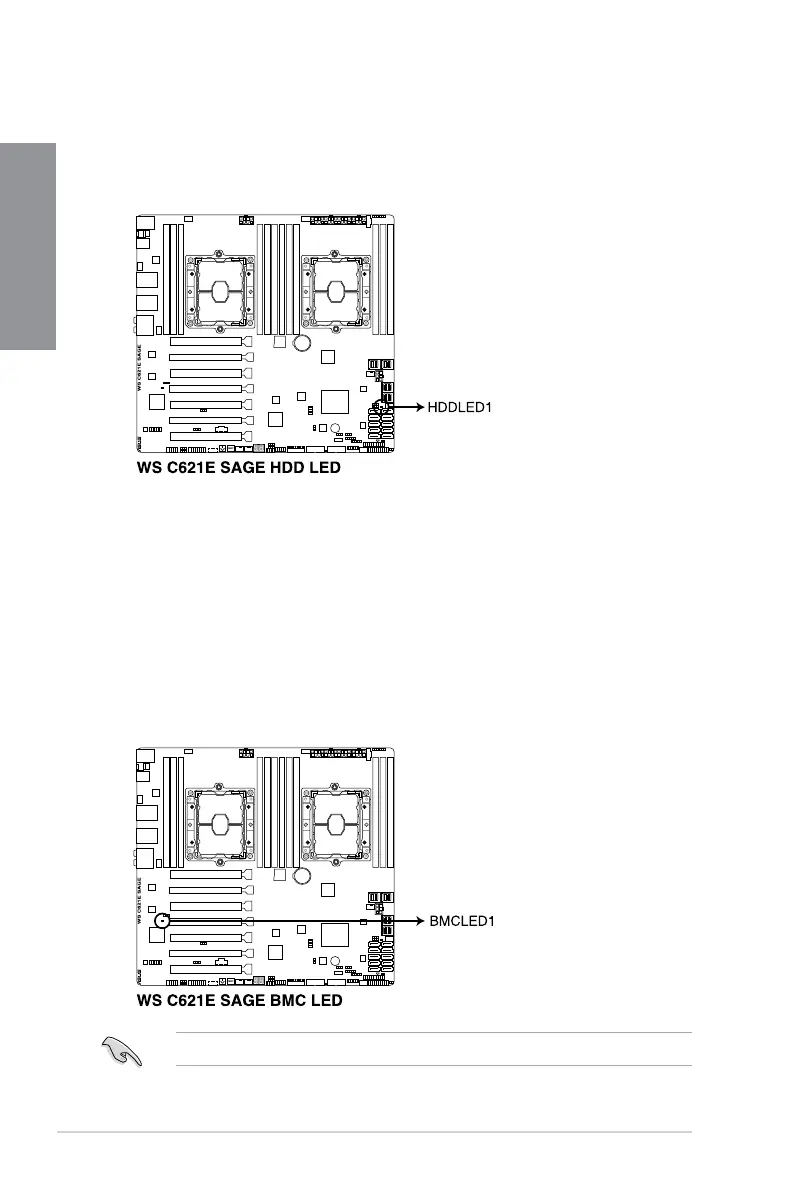

3. Hard disk activity LED (HDDLED1)
ThisLEDisforthestoragedevicesconnectedtotheonboardSATA,orSATA/SAS
add-oncard.ThereadorwriteactivitiesofanydeviceconnectedtotheonboardSATA,
orSATA/SASadd-oncardcausestherearpanelLEDtolightup.
4. Baseboard Management Controller LED (BMCLED1)
(for WS C621E SAGE (BMC) only)
TheBMCLEDworkswiththeASUSASMBmanagementdeviceandindicatesits
initiationstatus.WhenthePSUispluggedandthesystemisOFF,ASUSASMB
managementdevicestartssysteminitiationforaboutone(1)minute.TheBMCLED
blinksaftersysteminitiationnishes.
ThisLEDisonlyenabledfortheWSC621ESAGE(BMC)model.
