Asus WS C621E SAGE Series User Manual

ASUS WS C621E SAGE
1-25
Chapter 1

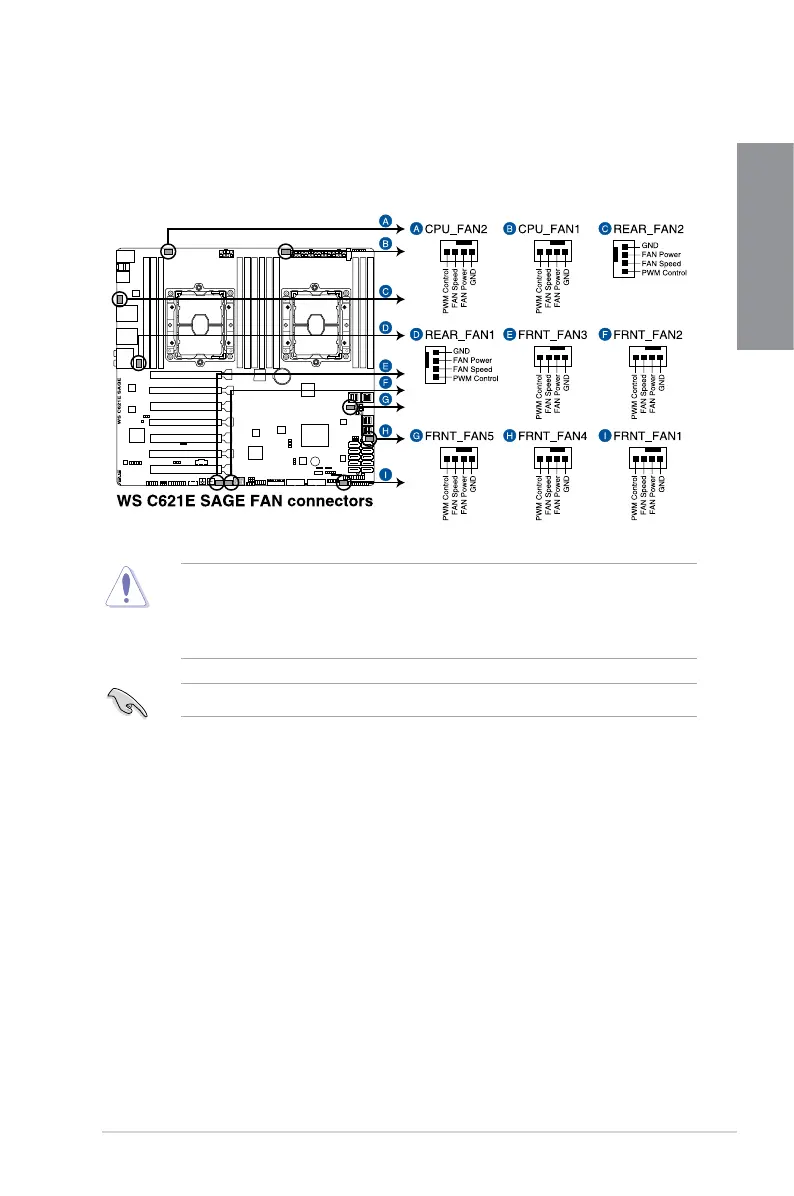

13. CPU, front, and rear fan connectors (4-pin CPU_FAN1-2; 4-pin FRNT_FAN1-5;
4-pin REAR_FAN1-2)
Connectthefancablestothefanconnectorsonthemotherboard,ensuringthatthe
blackwireofeachcablematchesthegroundpinoftheconnector.
TheCPU_FANconnectorsupportstheCPUfanofmaximum1A(12W)fanpower.
• DONOTforgettoconnectthefancablestothefanconnectors.Insufcientairow
insidethesystemmaydamagethemotherboardcomponents.Thesearenotjumpers!
Donotplacejumpercapsonthefanconnectors!
• EnsurethattheCPUfancableissecurelyinstalledtotheCPUfanconnector.

Asus WS C621E SAGE Series Specifications

General

CPU Support	Intel Xeon Scalable Processors
Chipset	Intel C621
Memory Slots	12 x DIMM
Form Factor	CEB
CPU Socket	LGA 3647
Memory Support	DDR4
Maximum Memory	768GB
Network	Dual Intel I210 Gigabit LAN
