installation
electrical connection
general
For the connection, use an approved cable, in accordance
with the regulations.
The cable casing should be of rubber.

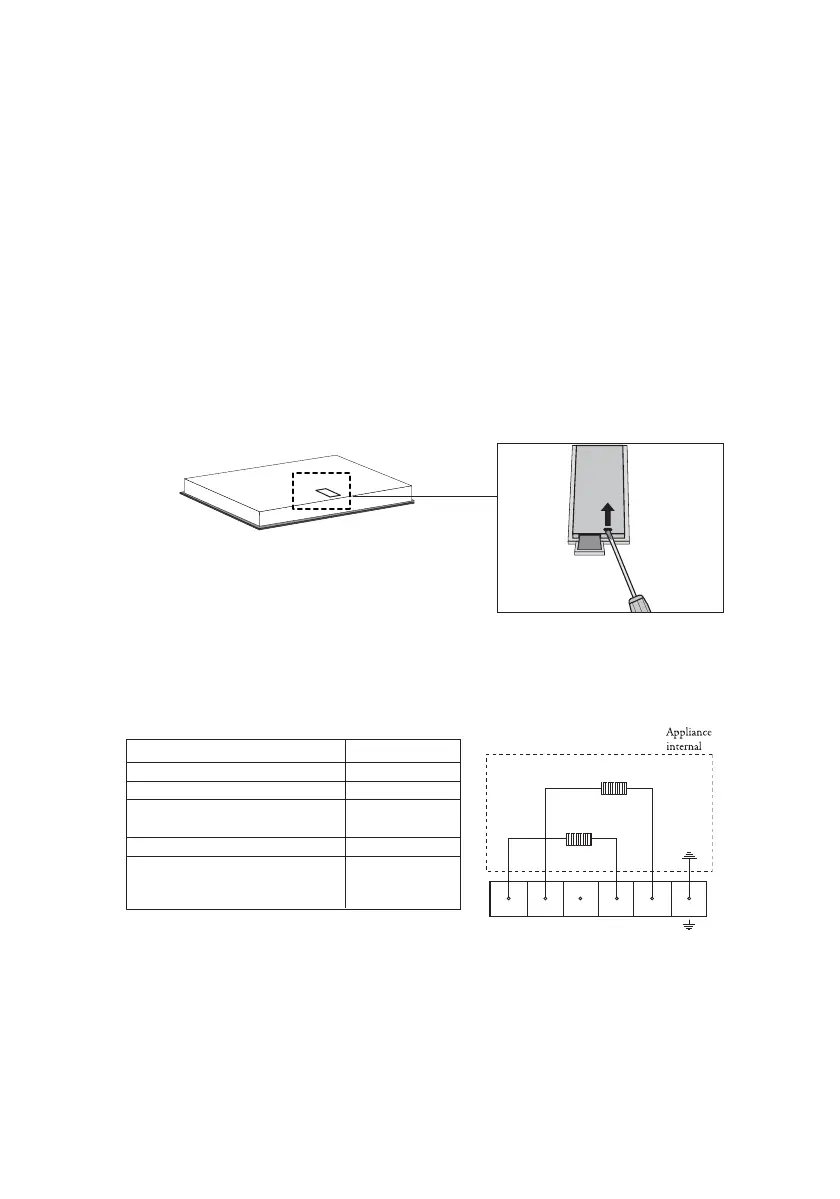

There is a label on the underside of the appliance with the
wiring diagrams. The connection terminals are accessible
once you have opened the junction box on the underneath.
The junction box cover can be opened with a screwdriver.
If you want to make a fixed connection, make sure that a
multi-polar switch with a contact separation of at least 3 mm
is fitted in the supply line.
GB 29
12345
right zones
left zones
Type of hob Induction
Component voltage 230V 50Hz
Appliance width x depth 644 X 522 mm
Installation height from
top of worktop 48 mm
Cut out dimensions width x depth 560 x 490 mm
Capacities of modules
Left 3600 W
Right 3600 W
700001624100 HL HI6071M.qxp 12-10-2005 12:09 Pagina GB 29
