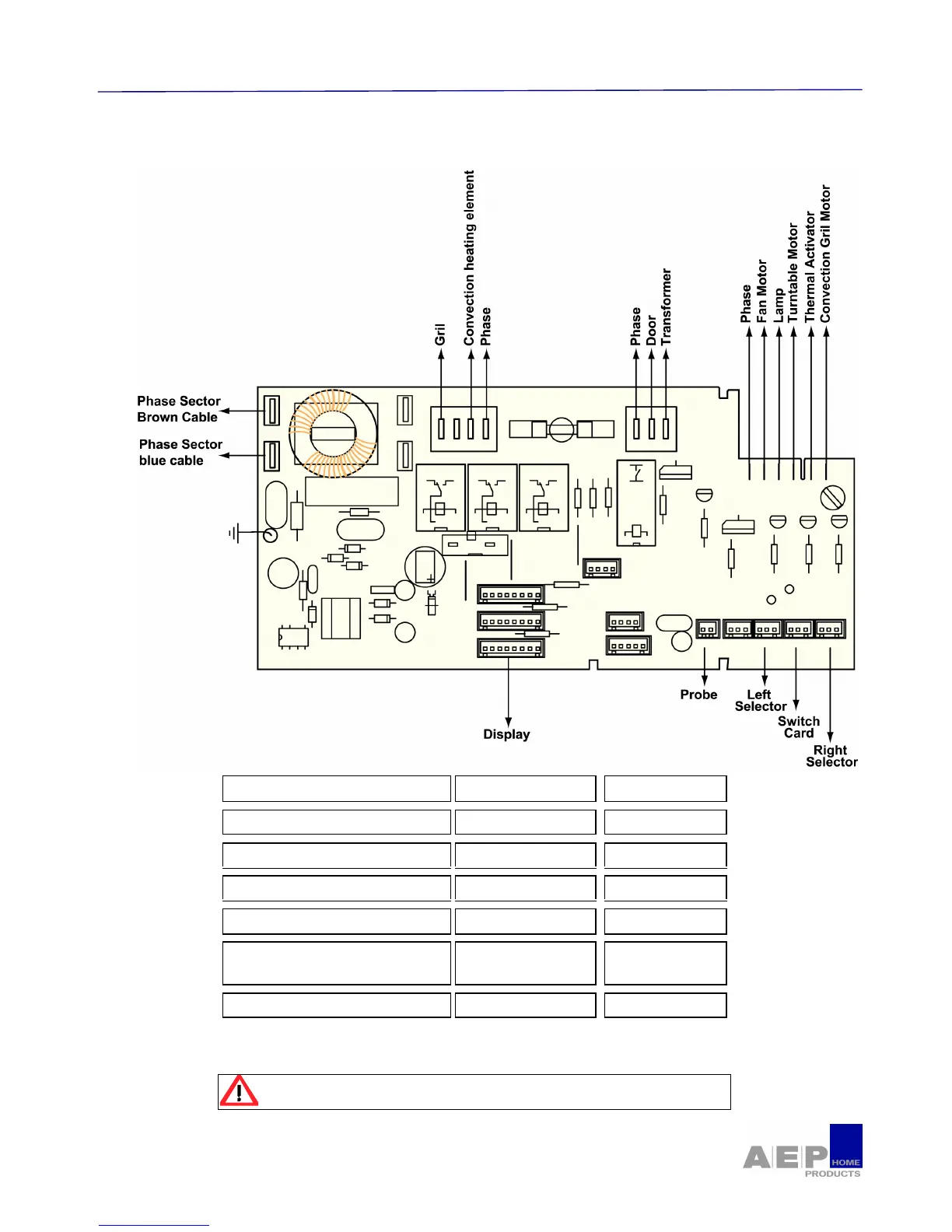

14 - ELECTRONIC CARD PELGRIM COMBI
controls must be done over voltage with connectors disconnected
ON THE OHMMETER
Mark
Component
Ohm
Ph - Gril
Gril
30 Ω
Ph – Convection grill
Convection grill
32,5 Ω
Ph - Fan motor
Fan motor
60 Ω
Ph - Lamp
Lamp
192 Ω
Ph - Turntable motor
Turntable motor
15,7 kΩ
Ph – Thermal activator
Thermal activator
820 Ω
Ph - Convection grill motor
Convection grill
motor
100 Ω
Probe
Probe
215 kΩ à 20°C
